Videoton R545

                        (clock version)

Videoton R 545
This is Berti Benis's web-site          you are on          www.bertibenis.it













Brand

Videoton

Model

R545

Country

Hungary

Year

1955

Frequency range

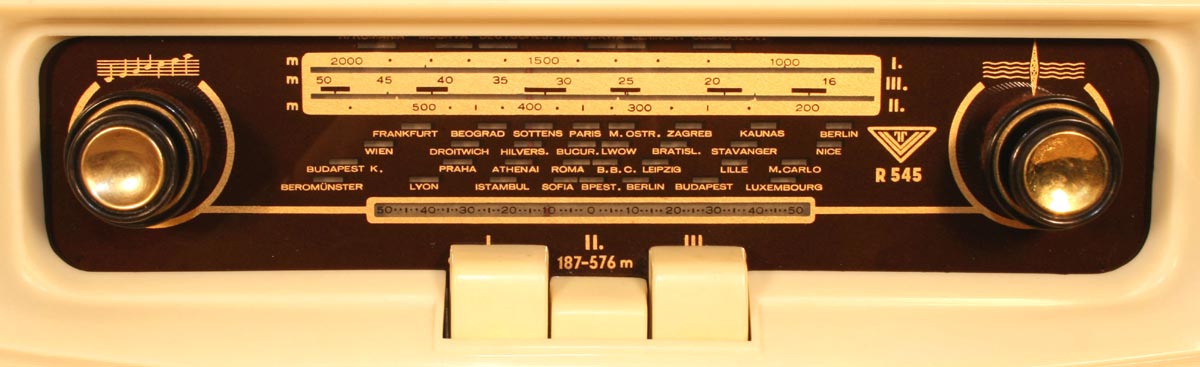

Long Waves (967 - 2000 m), Medium Waves (187 – 576 m), Short Waves (16 – 51 m).

Tubes

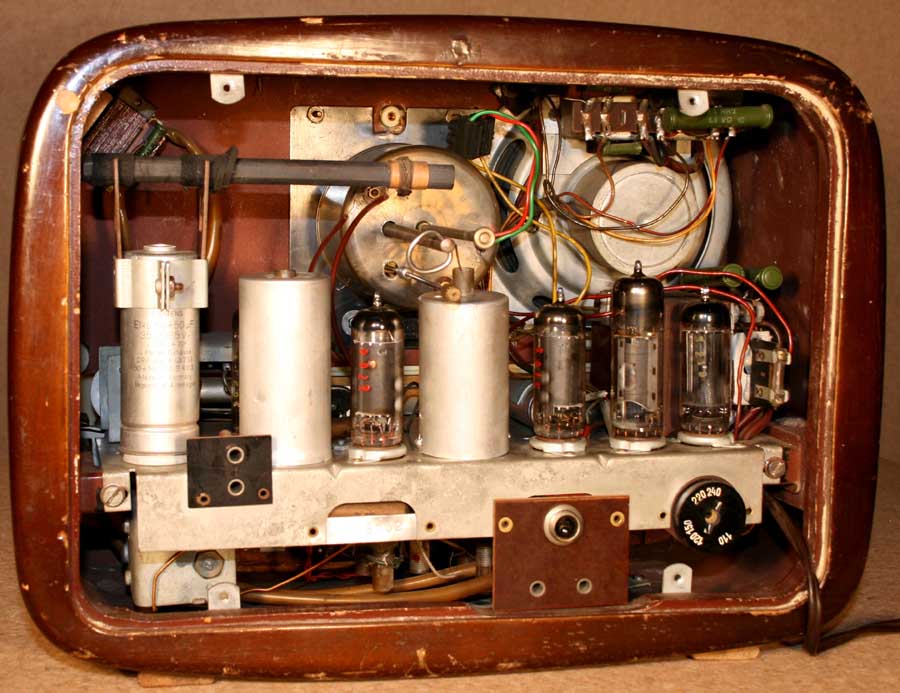

ECH81 – EBF80 – EBF80 - EL84 – EZ80

Intermediate frequency

450 Kc

Power supply

110 / 125 / 150 / 220 / 240 V. a.c.

Measure of the case

34 cm wide; 25 cm tall; 17,5 cm deep.

Overall dimensions

34 cm wide; 25 cm tall; 19,5 cm deep.

Weight

Kg. 5



In 1954 the Vadásztöltény of Székesfehérvár, an industry already known for forty years for the construction of precision mechanical parts, began to produce radios and the first model was the R 545 which was built in 100,000 pieces.
The following year the company was renamed Videoton.

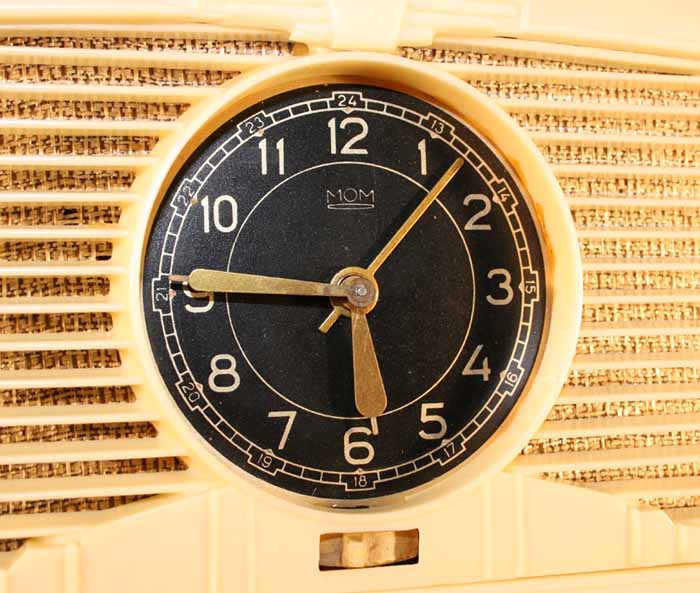

This version has a mechanical clock with a programmable electric contact which can works also as alarm-clock.
