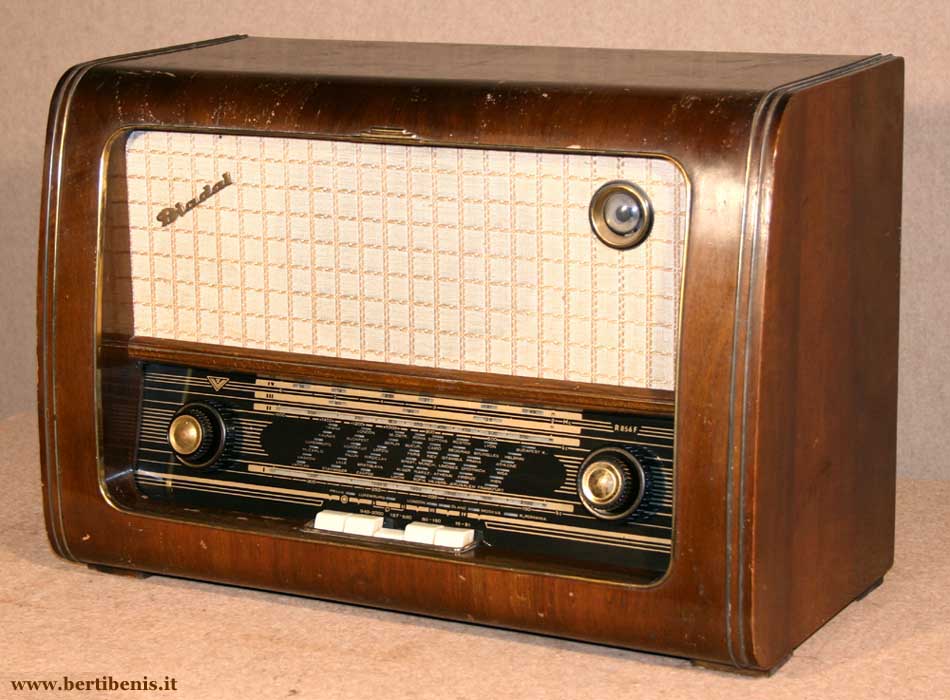

Videoton R 856 F  Diadal

Videoton R856F  Diadal

  Videoton R 856F  Diadal

This is Berti Benis's web-site          you are on          www.bertibenis.it















Brand

Videoton

Model

R 856F Diadal

Country

Hungary

Year

1956 / 57

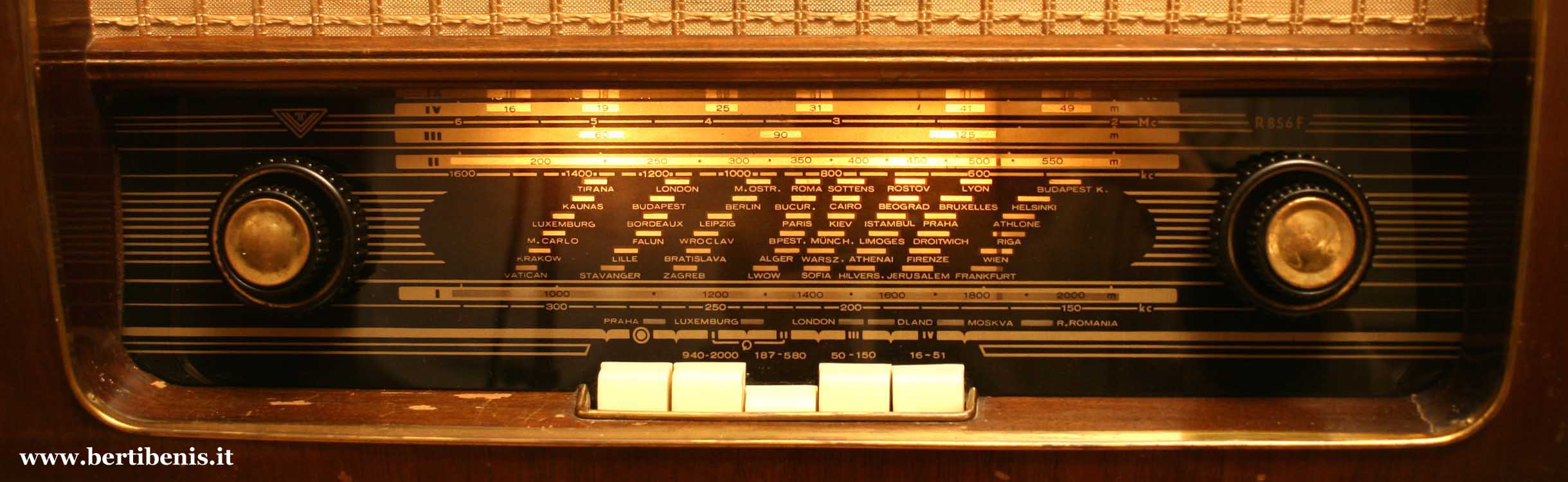

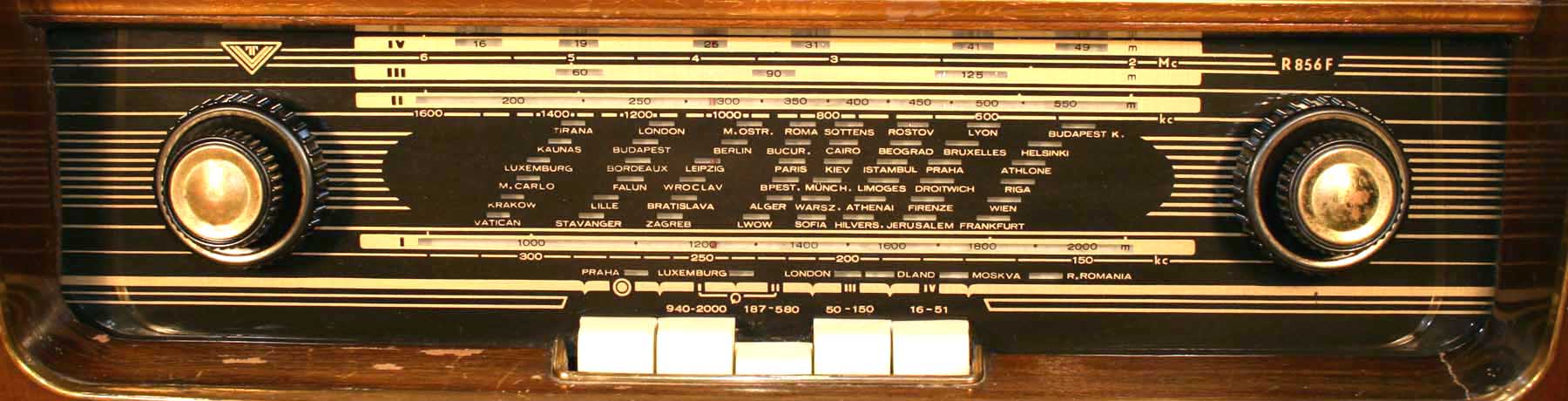

Frequency range

Long Waves (940 - 2000 m), Medium Waves (187 – 580 m), Short Waves 1 (50 – 150 m), Short Waves 2 (16 - 51 m).

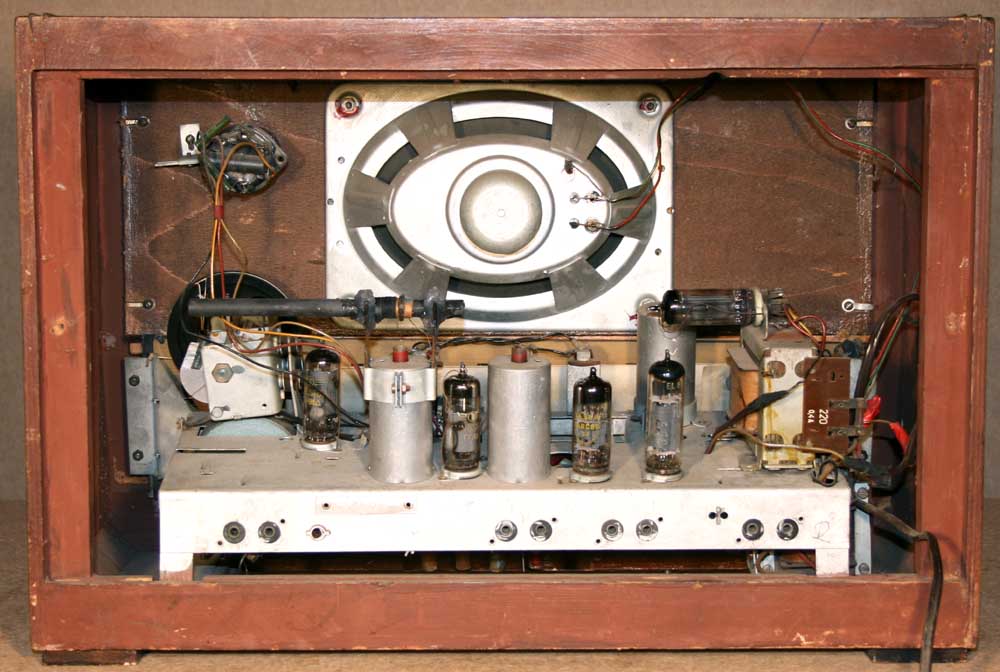

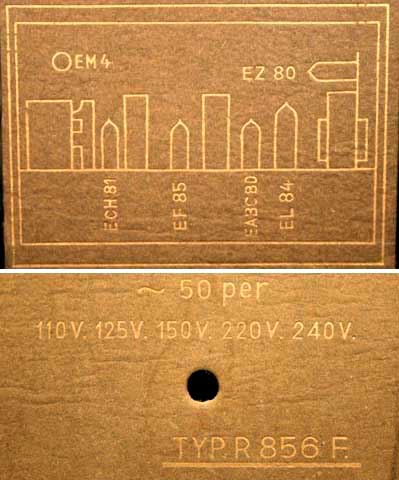

Tubes

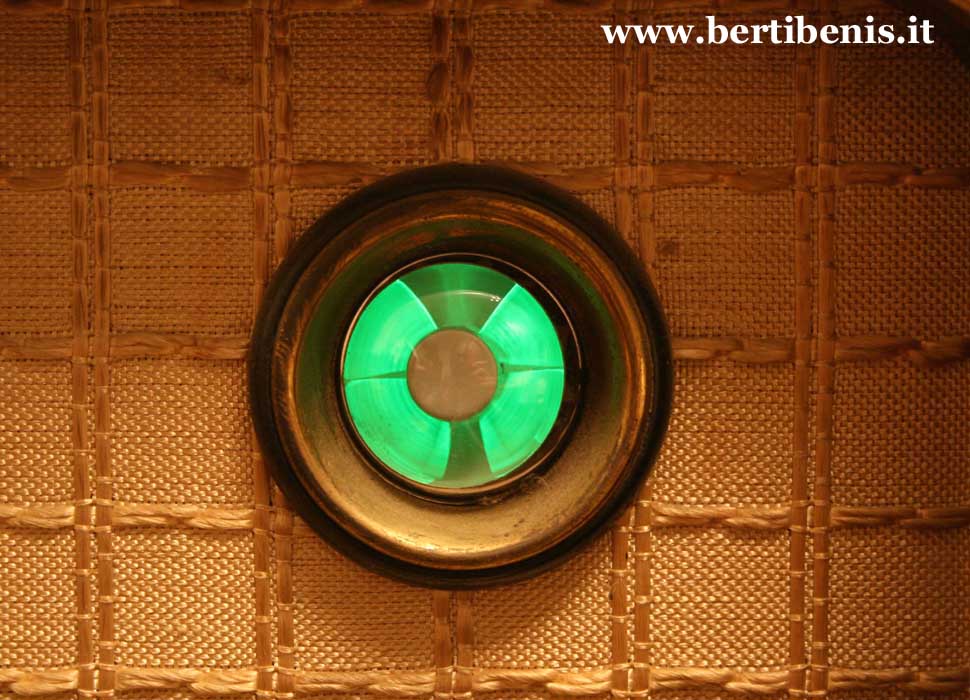

ECH81 – EF85 – EABC80 - EL84 - EZ80 - EM4

Intermediate frequency

473,6 Kc

Power supply

110 / 125 / 150 / 220 / 240 V. a.c.

Measure of the case

51 cm wide; 34 cm tall; 25 cm deep.

Overall dimensions

51 cm wide; 35 cm tall; 25 cm deep.

Weight

Kg. 11
