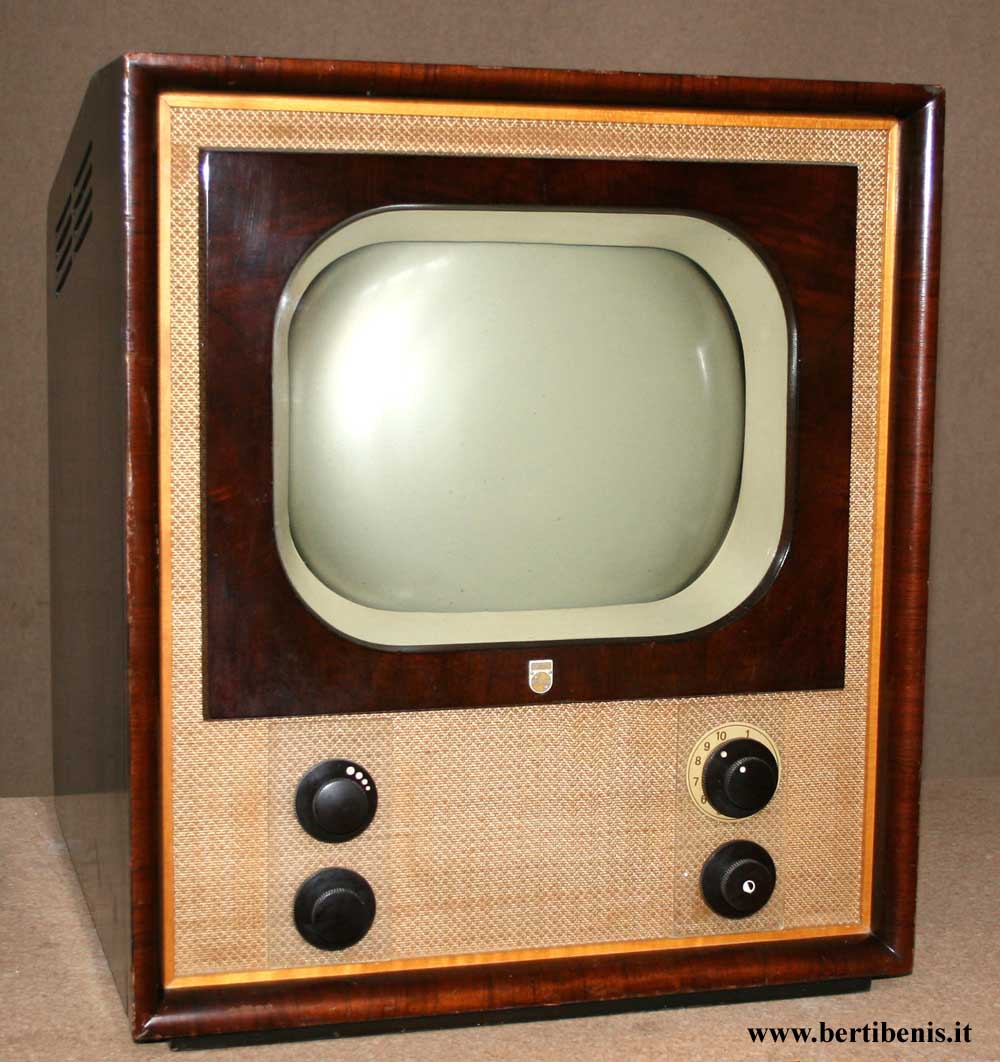

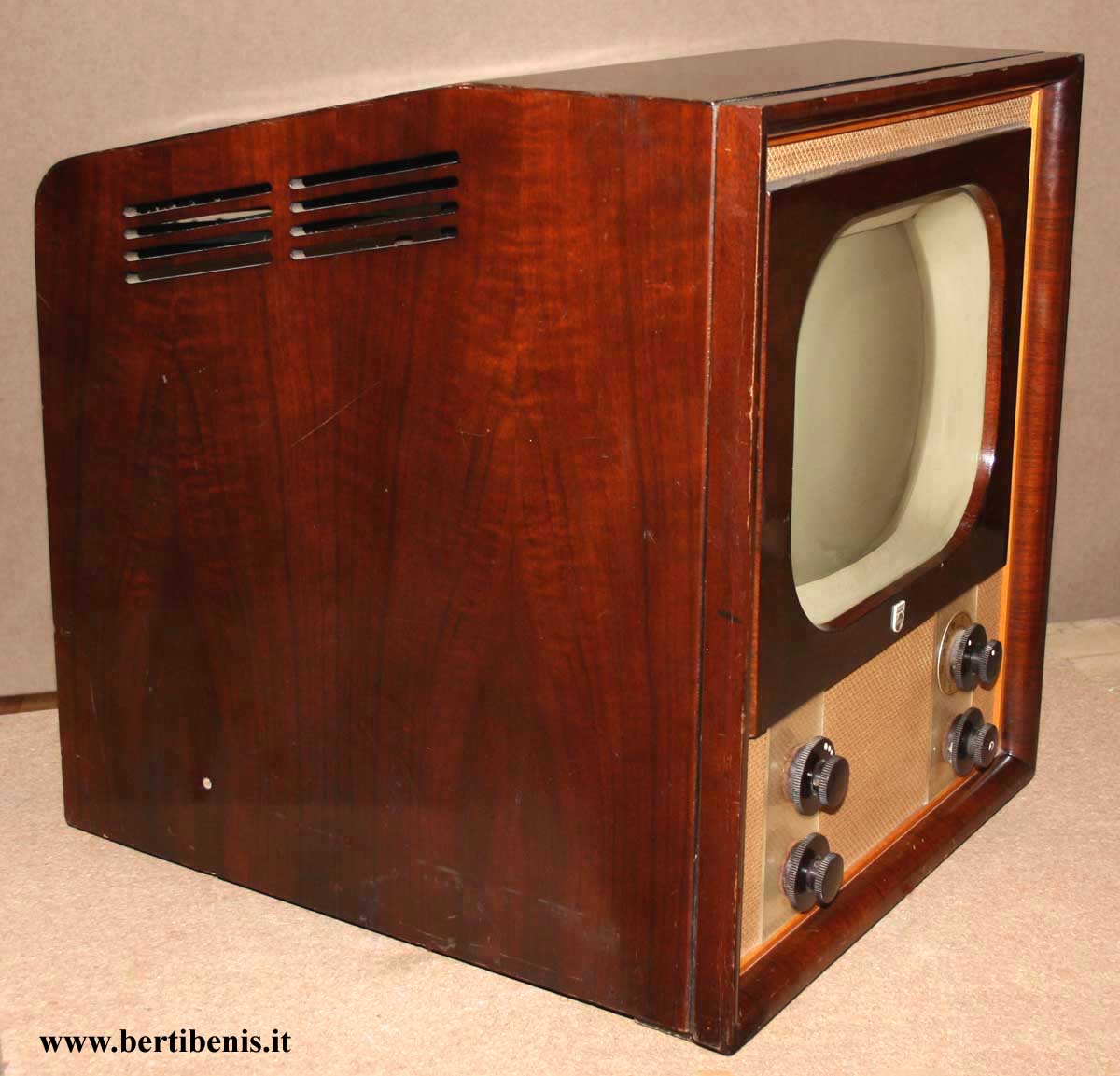

                                          TV Philips TX500 U 04



This is Berti Benis's web-site          you are on          www.bertibenis.it



















Brand

Philips

Model

TX500 U-04

Country

Olanda ( Eindhoven)

Year

1951

Freq. range

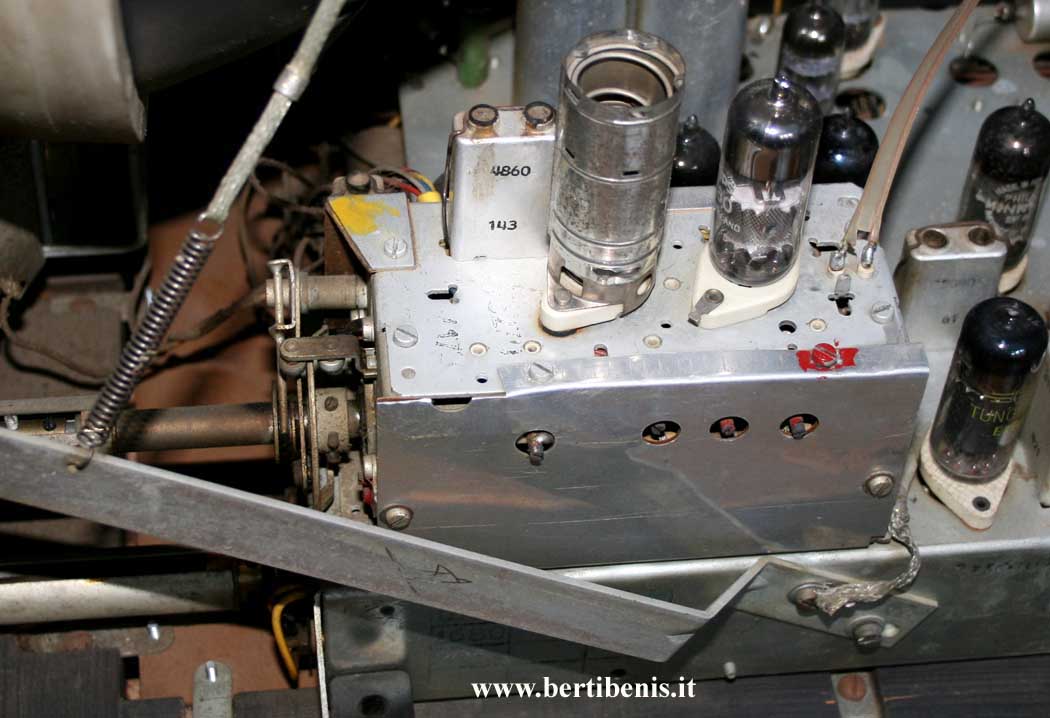

VHF - ten channel

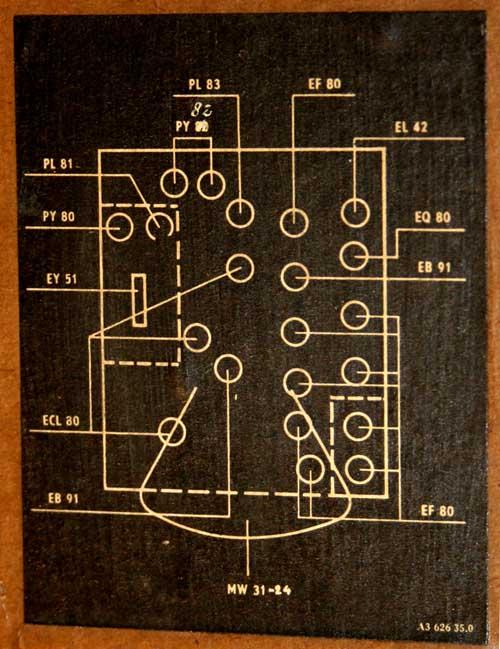

Tubes 9 x EF80 - 2 x EB91 - EQ80 - EL42 - 3 x ECL80 - PL83 - 2 x PY82 - PY80 - PL81 - EY51

Cathode ray tube

MW 31-24

Screen diameter

12" / 30 cm

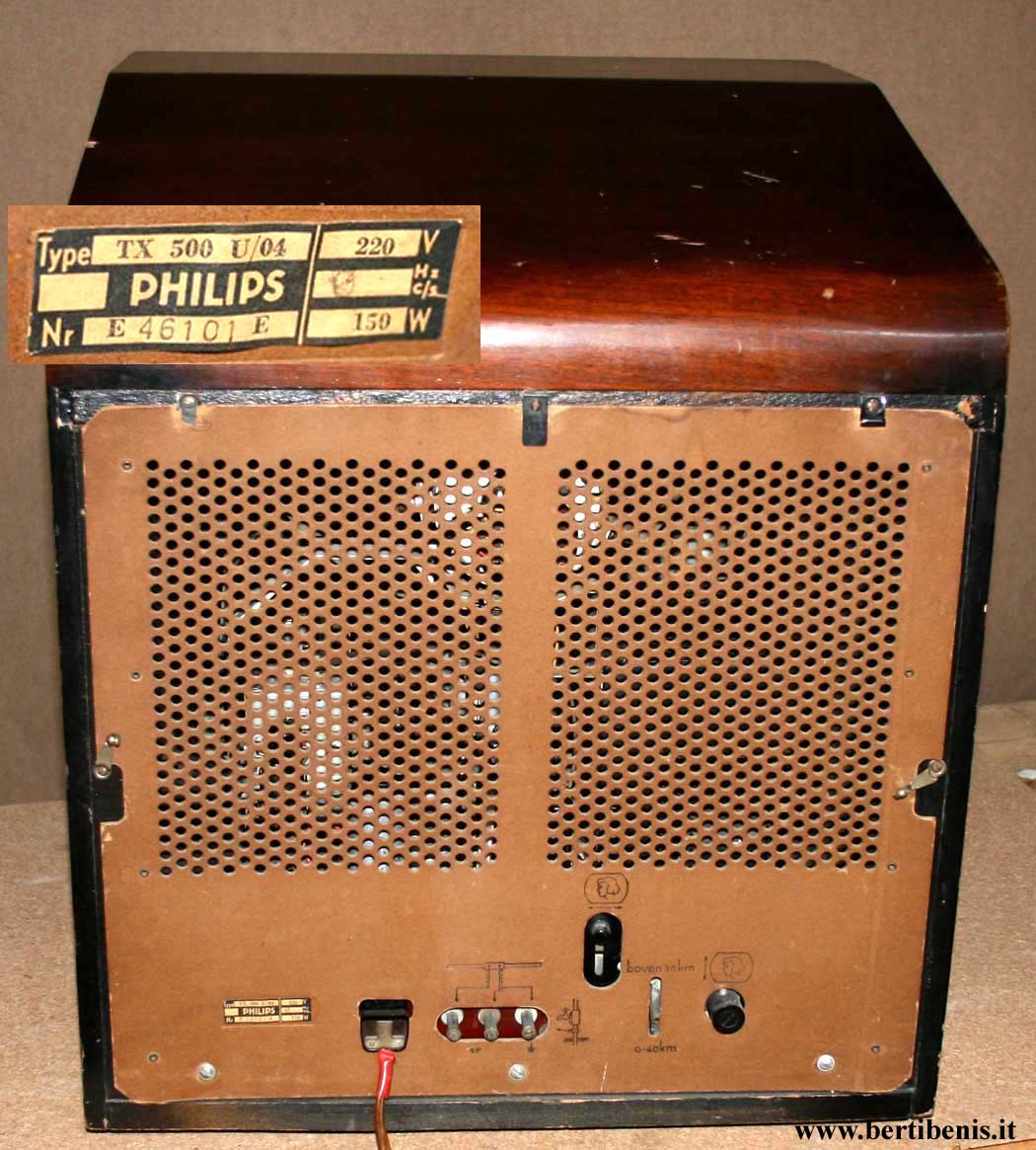

Power supply

220 V. c.a. / 150 W

Measure of the case

46,5 cm wide;  52,5 cm tall ; 52 cm deep.

Overall dimensions

46,5 cm wide;  54,5 cm tall ; 53 cm deep.

Weight

Kg. 25



TX 500 was produced in two versions:  4 channels and 10 channels.

Working system is:  625 lines negeative modulation /FM sound , C.C.I.R.
