                                   TV Philips TX400 U-04



This is Berti Benis's web-site          you are on          www.bertibenis.it































Brand

Philips

Model

TX400 U-04

Country

Holland ( Eindhoven)

Year

1950

Frequency range

VHF - four channel

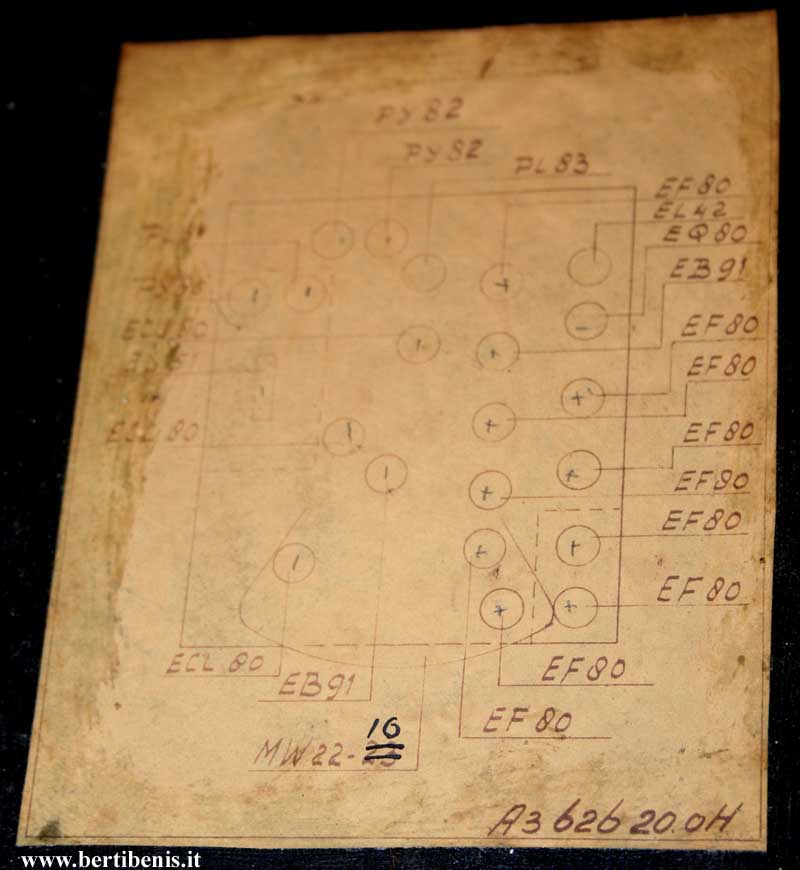

Tubes 9 x EF80 - 2 x EB91 - EQ80 - EL42 - 3 x ECL80 - PL83 - 2 x PY82 - PY80 - PL81 - EY51

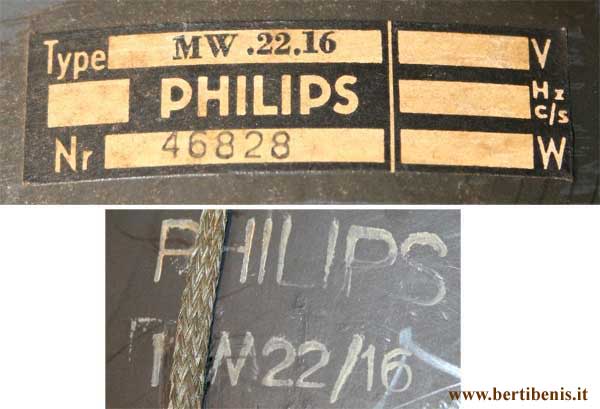

Cathode ray tube

MW 22/16

Screen

 9" / 22 cm diagonal

Power supply

220 V. c.a. / 150 W

Measure of the case

38 cm wide; 46 cm tall; 43 cm deep.

Overall dimensions

38 cm wide; 46 cm tall; 45 cm deep.

Weight

Kg. 18



TX400 was one of the first TV sets manufactured in europe in the after war age, working system is:  625 lines negeative modulation /FM sound , C.C.I.R.

It was produced in the two versions: four channel / ten channel.
