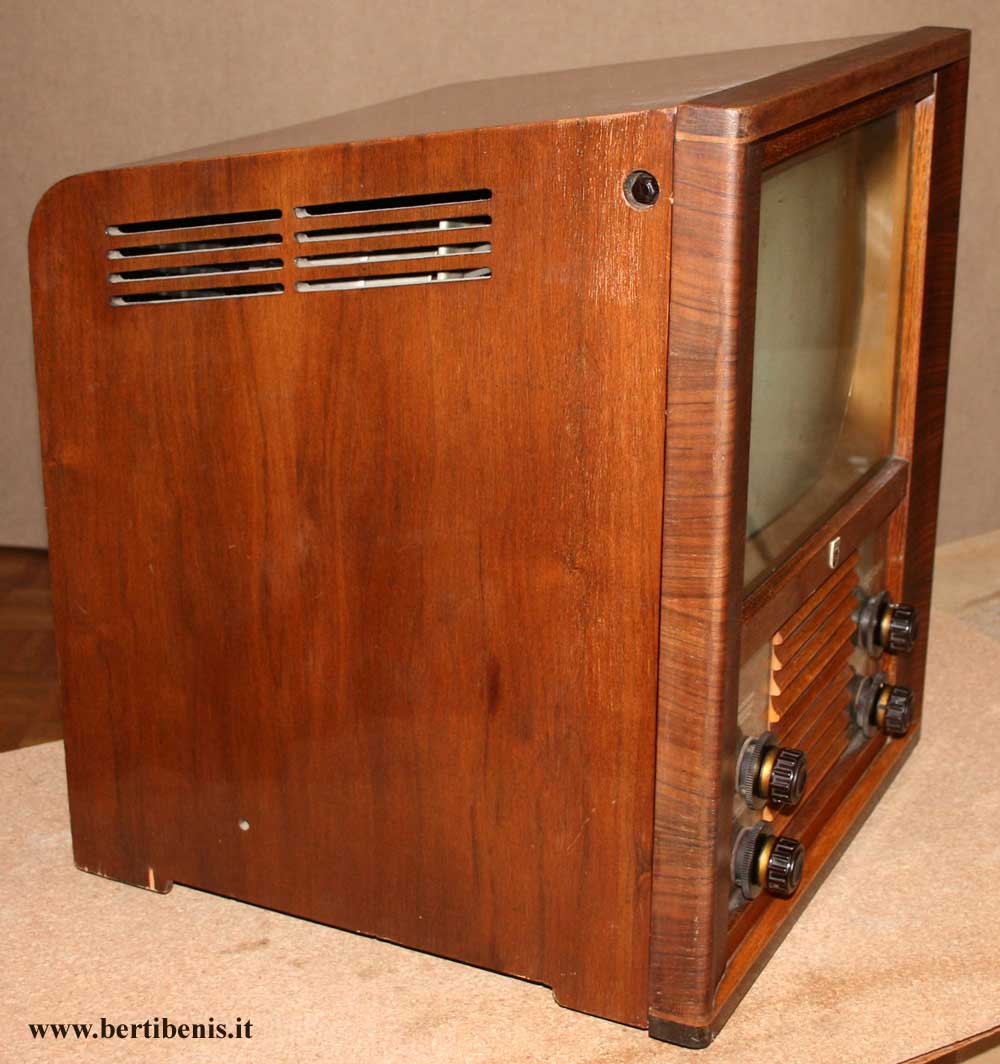

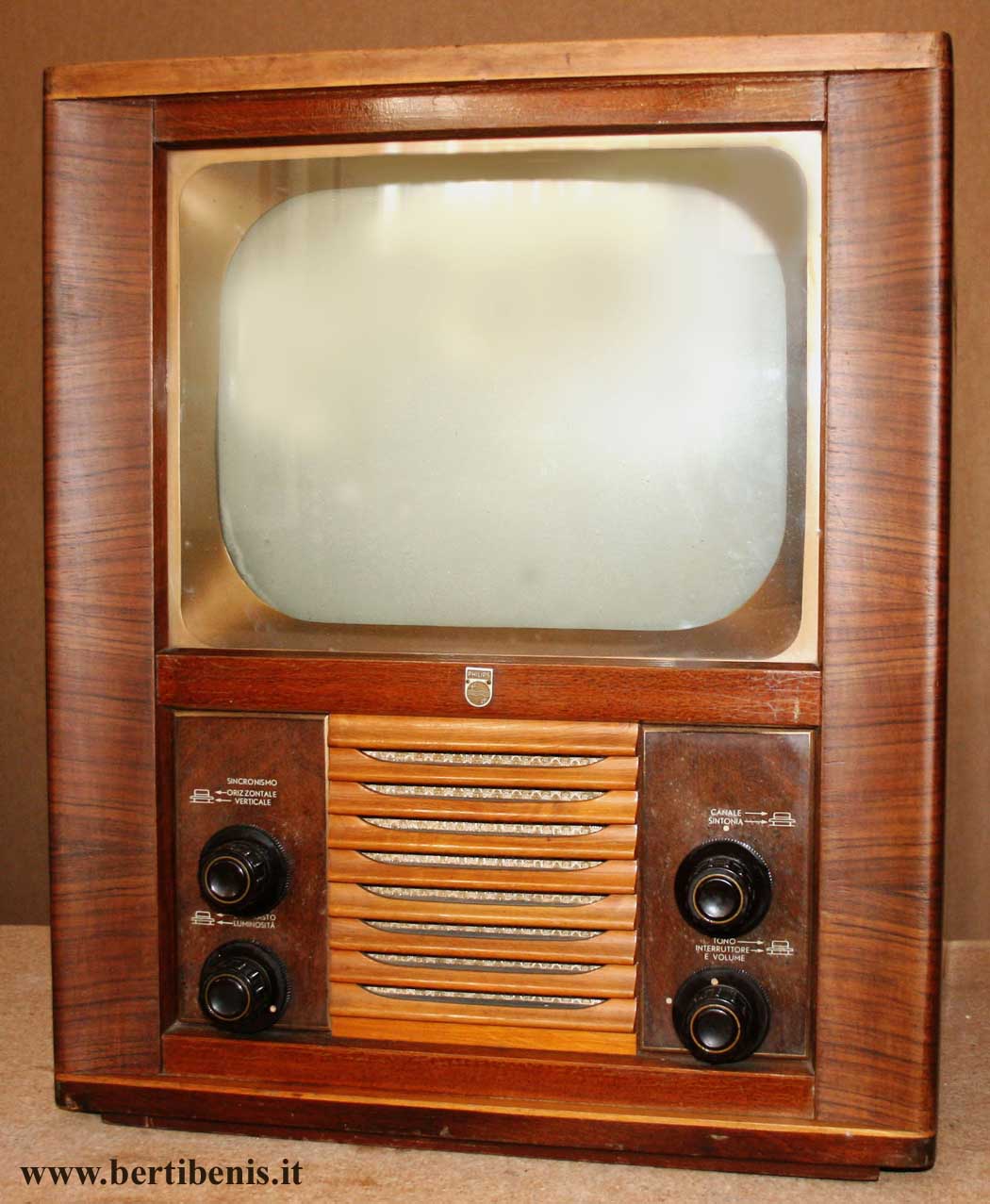

                                            TV Philips TX1410 U



This is Berti Benis's web-site          you are on          www.bertibenis.it

























Brand

Philips

Model

TX 1410 U

Country

Olanda (Eindhoven)

Year

1952

Frequency range

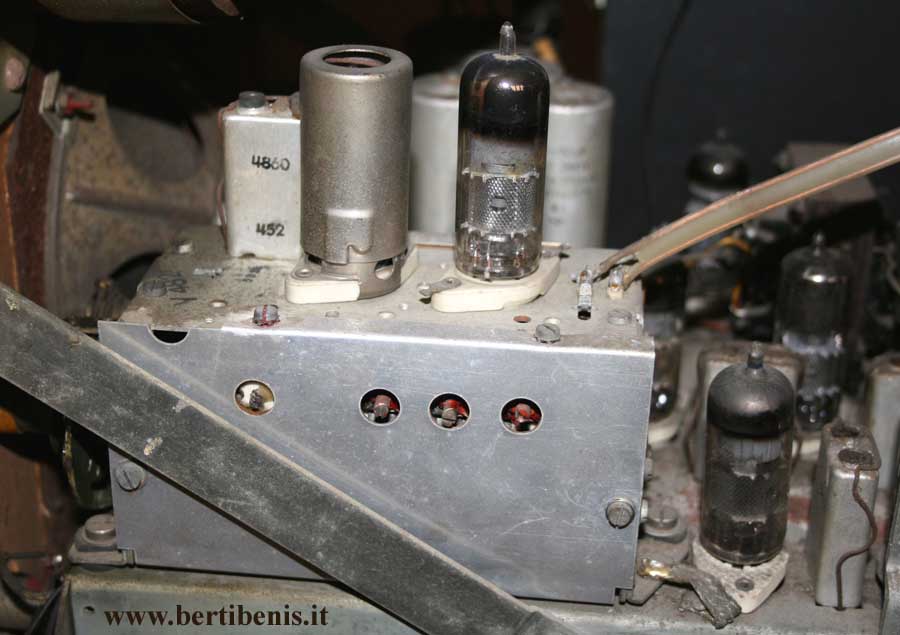

VHF - ten channels

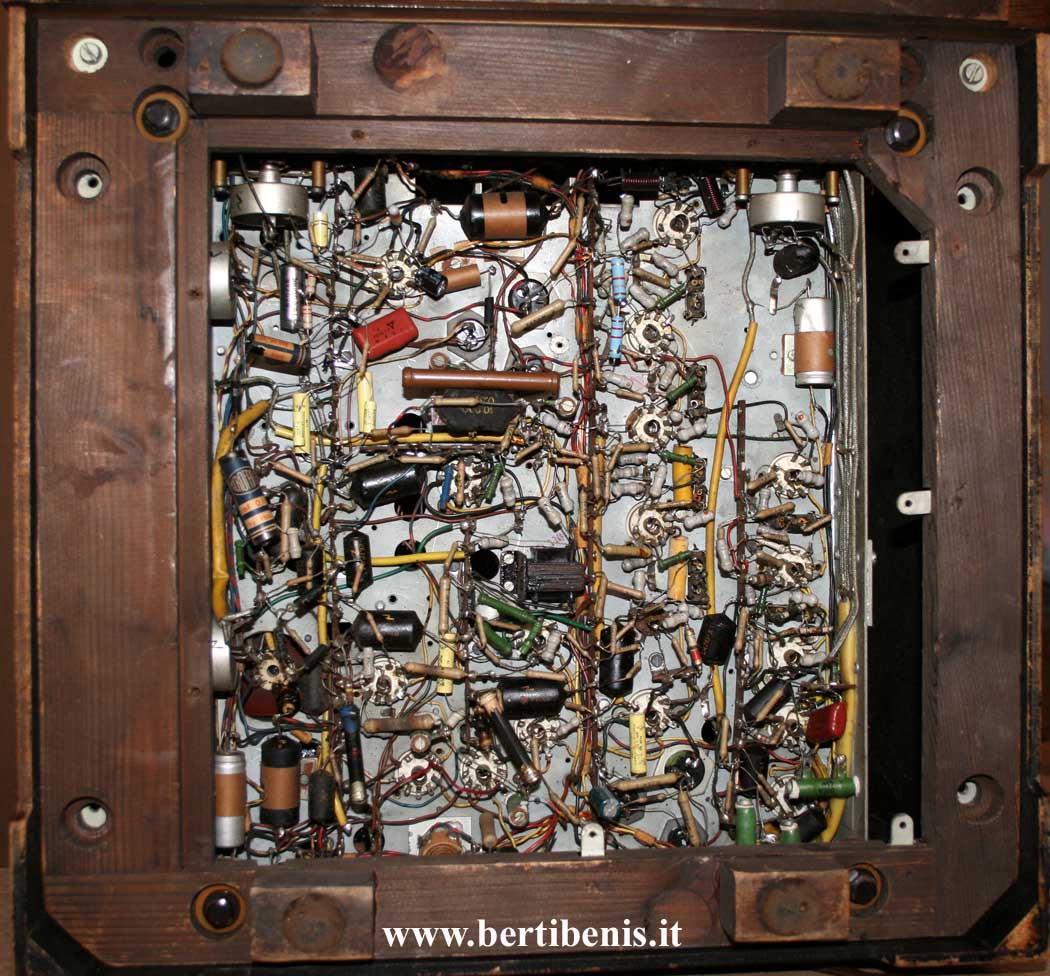

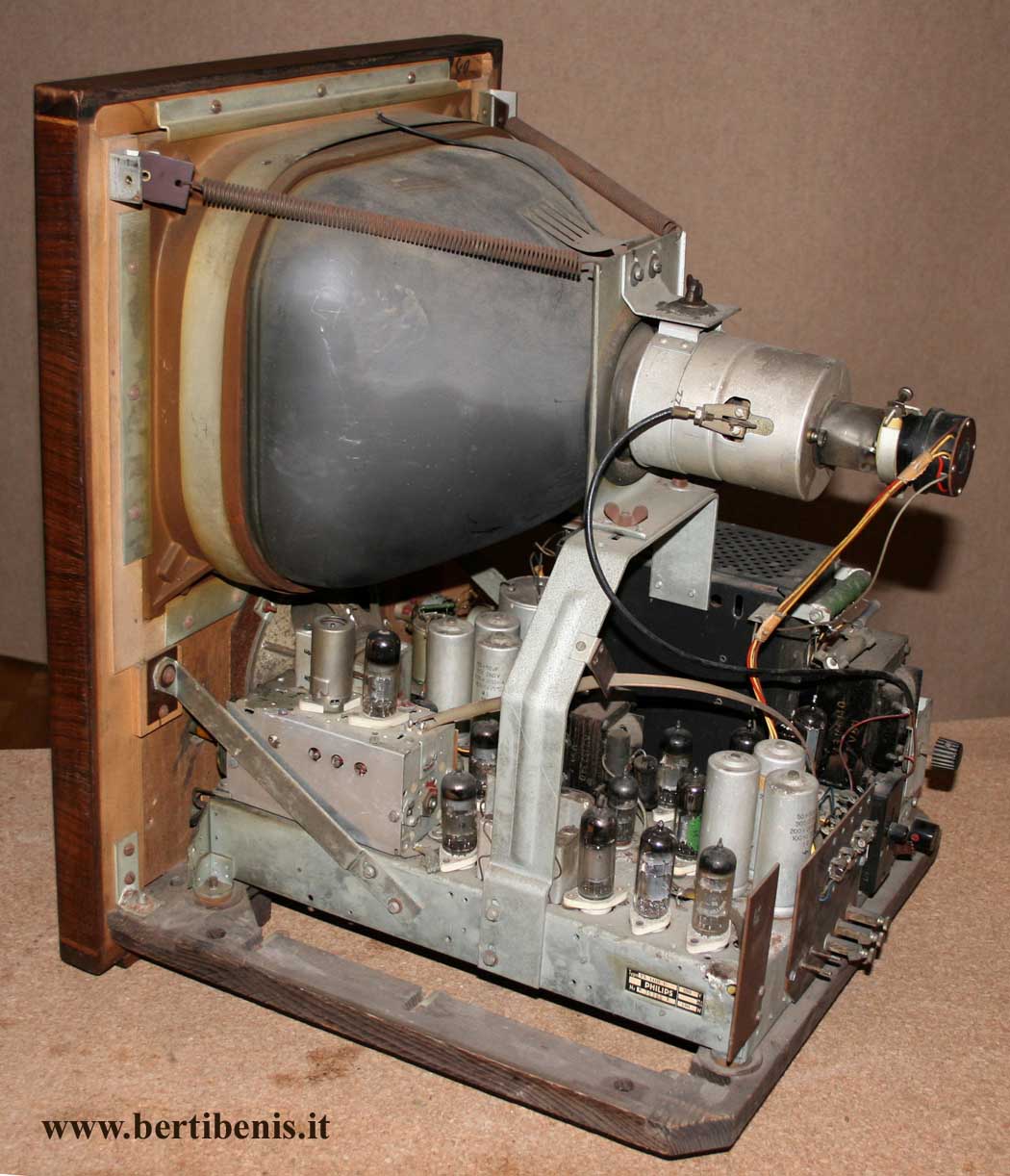

Tubes ECC81 - 8 x EF80 - 2 x EB91 - 5 x ECL80 - EQ80 - PL83 - 2 x PY82 - PY80 - PL81 - EY51

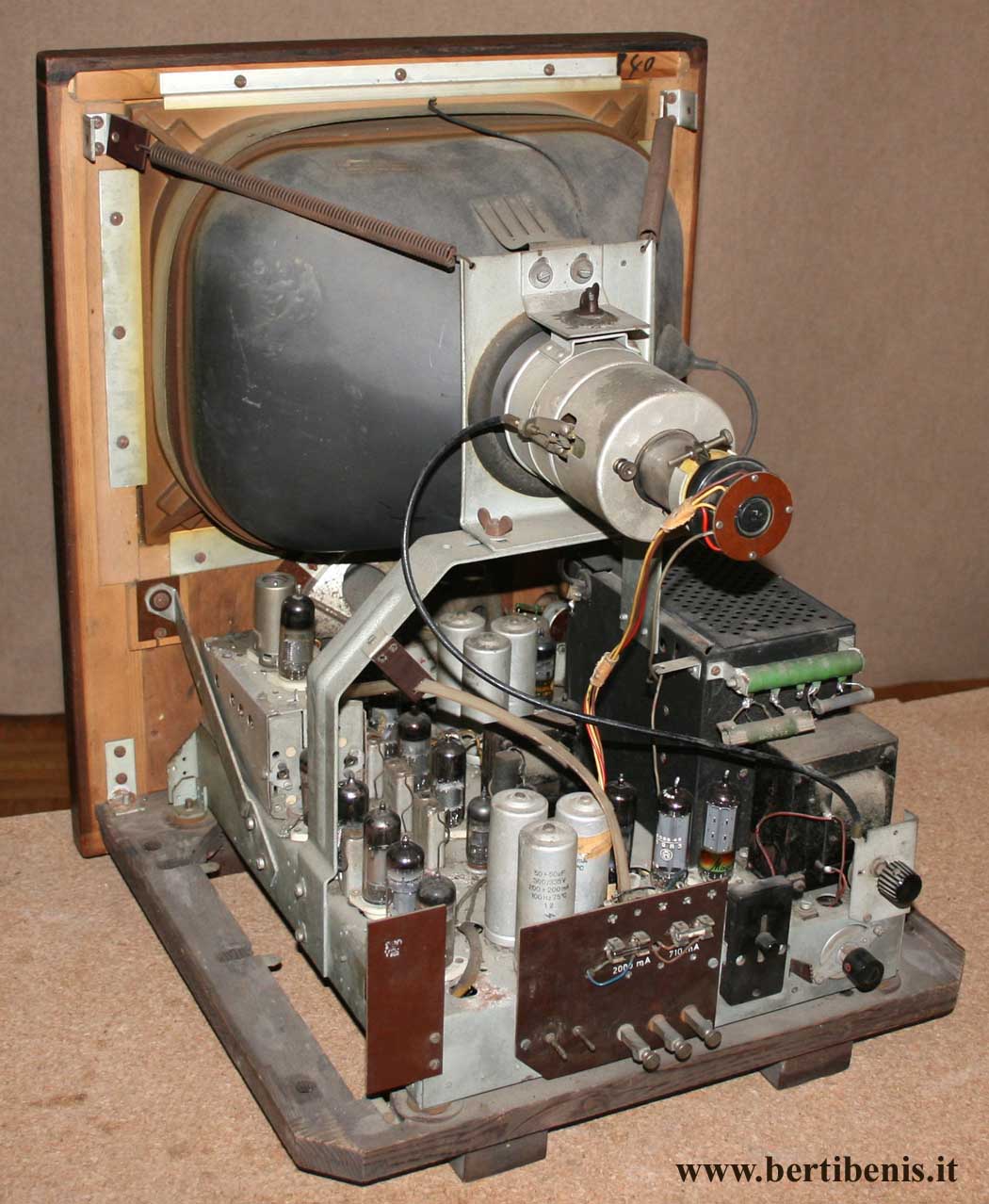

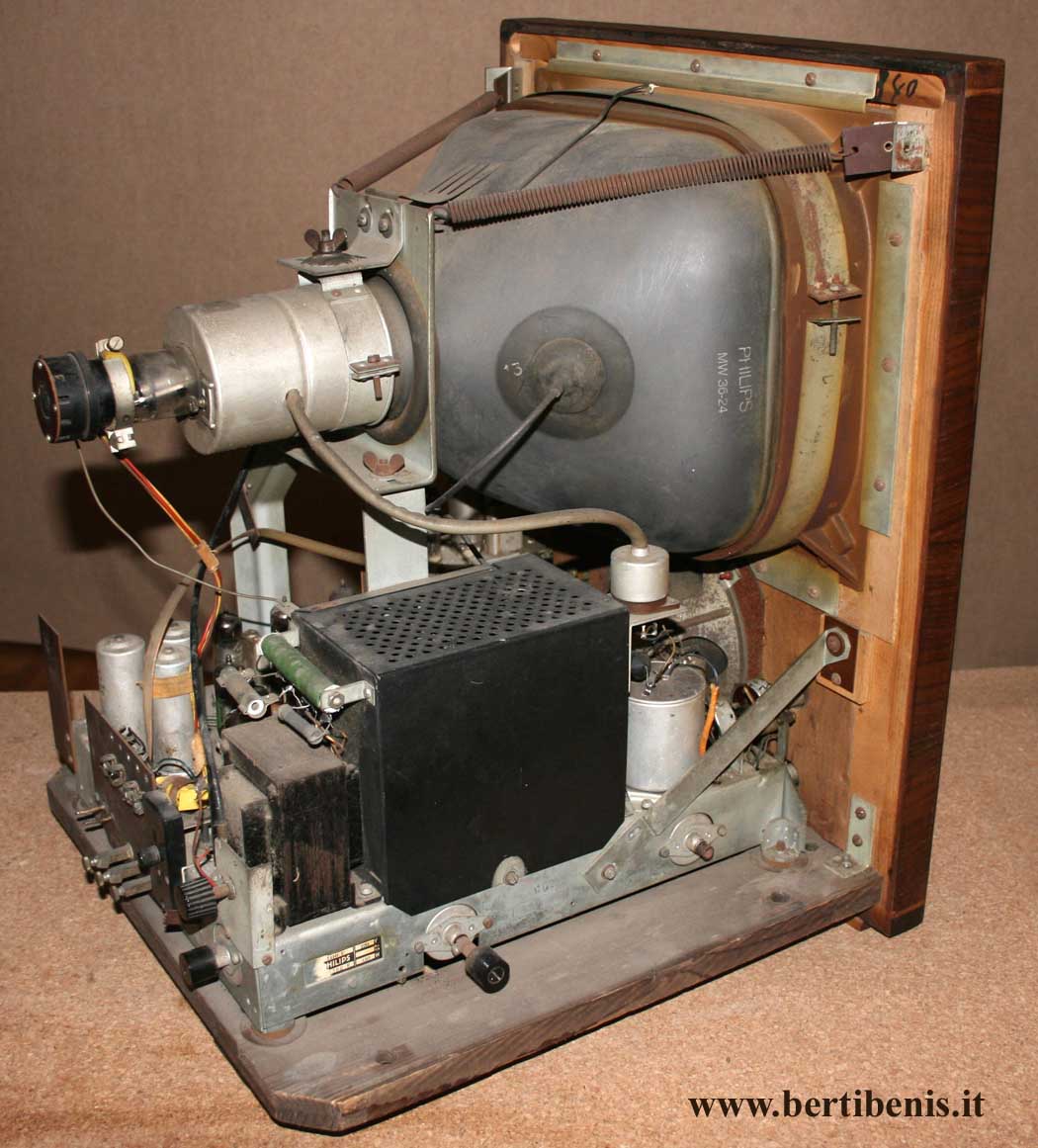

Cathode ray tube MW 36-24

Screen

14" / 36 cm diagonal

Power supply

220 V. c.a. / 150 W

Measure of the case

44,7 cm wide; 53 cm tall; 44,5 cm deep.

Overall dimensions

44,7 cm wide; 54 cm tall; 48,5 cm deep.

Weight

Kg. 25

TX1410 is the first Philips TV set introduced in Italy in 1952 at the starting broadcast age.
Receiving system is C.C.I.R. 625 lines with negative modulation / FM audio.
