Brand
|
Philips
|
|
Model
|
TX 1410 U-48
|
|
Country
|
Olanda
(Eindhoven)
|
|
Year
|
1952
|
|
Frequency range
|
VHF
- ten channels
|
| Tubes |

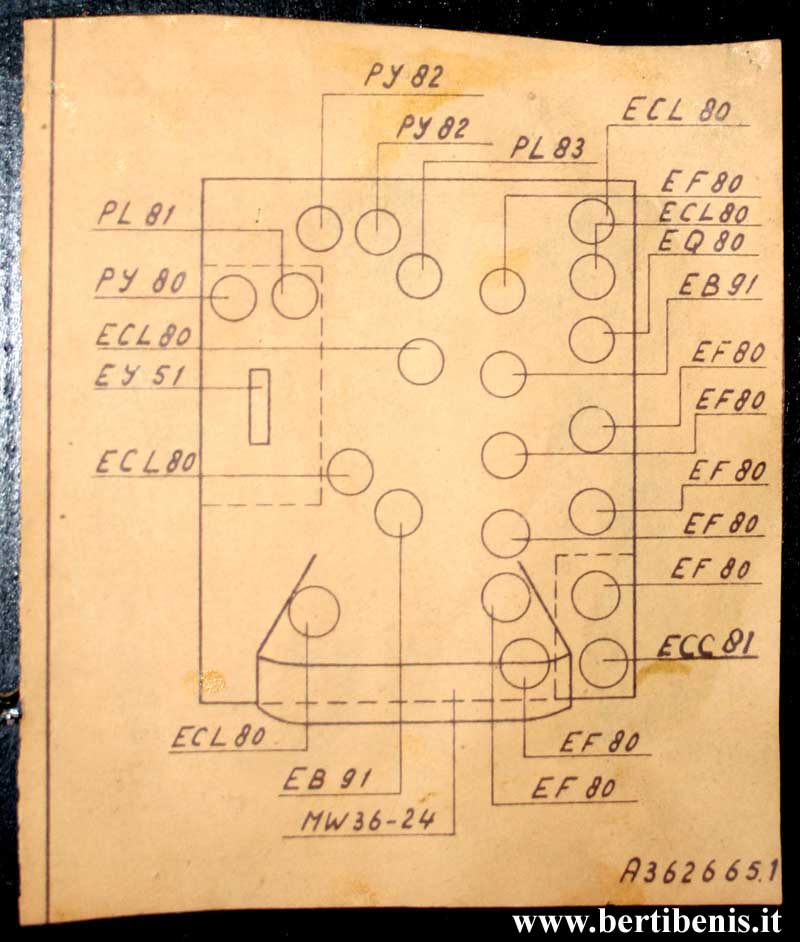

ECC81 - 8 x EF80 - 2 x EB91 - 5 x ECL80 - EQ80 -
PL83 - 2 x PY82 - PY80 - PL81 - EY51 |
| Cathode ray tube |
MW
36-24
|
|
Screen
|
14"
/ diagonal
36 cm
|
|
Power
supply
|
220 V. c.a.
/ 150 W
|
|
Measure of the case
|
44,7
cm wide; 53 cm tall; deep 44,5 cm.
|
|
Overall
dimensions
|
44,7
cm wide; 54 cm tall; deep 48,5 cm.
|
|
Weight
|
Kg.
25
|

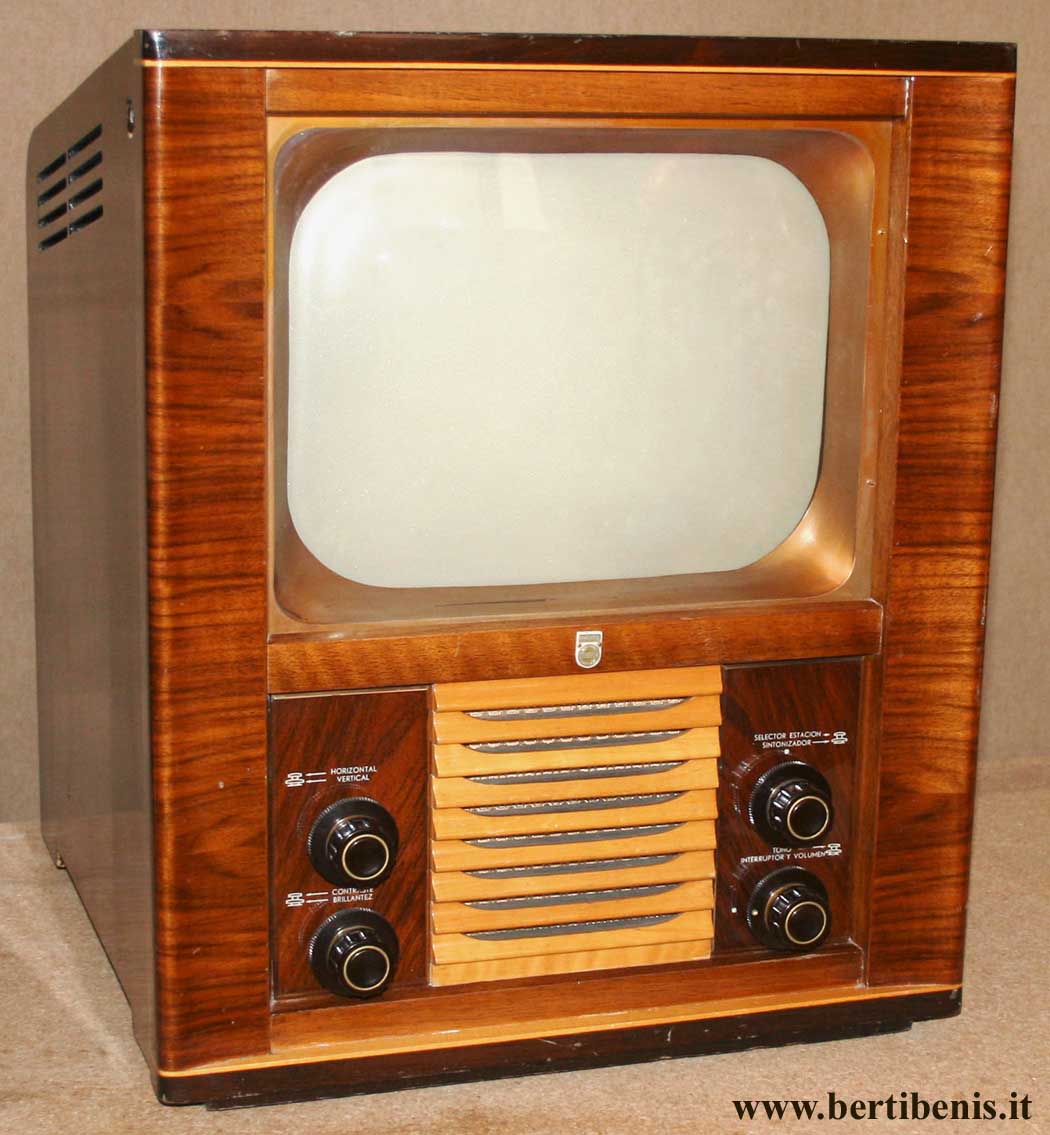

TX1410 is the first Philips TV set manufactured with rectangular screen. Receiving system is C.C.I.R. 625 lines with negative modulation / FM audio.

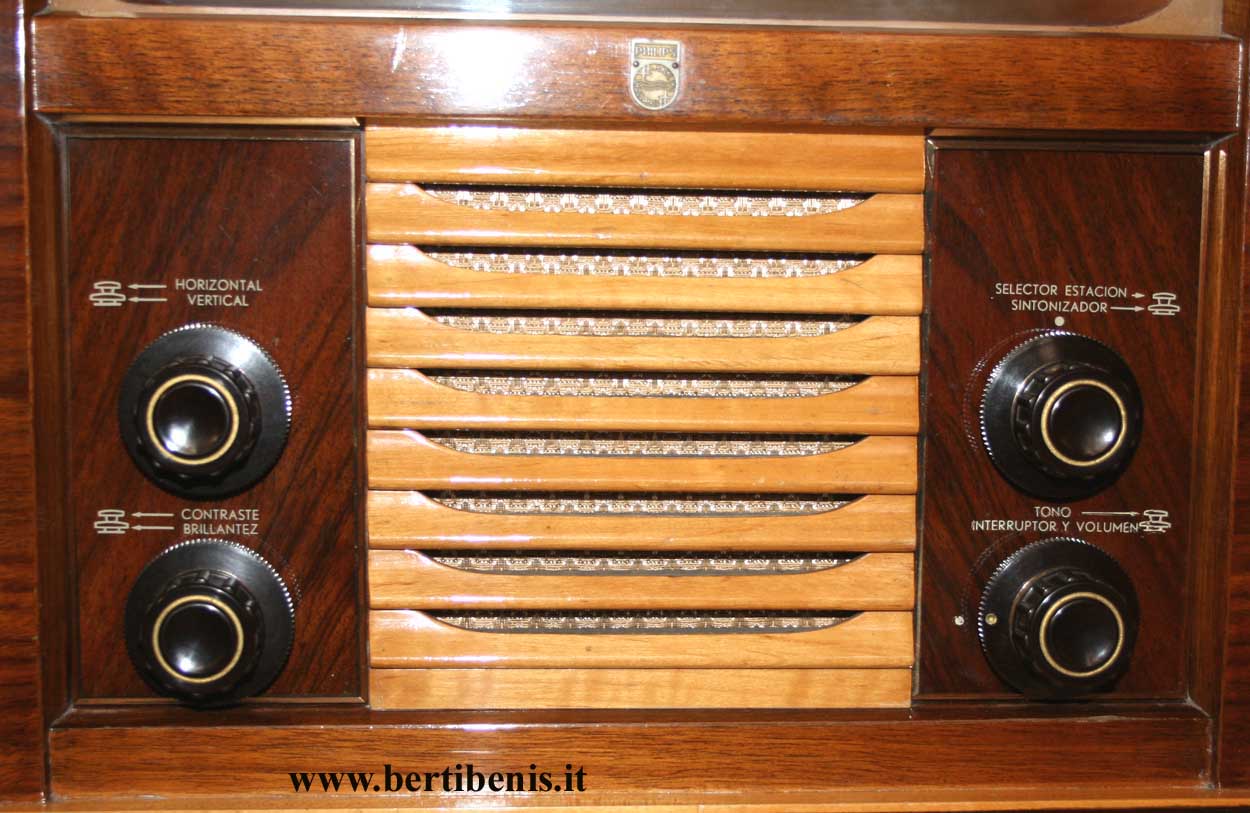

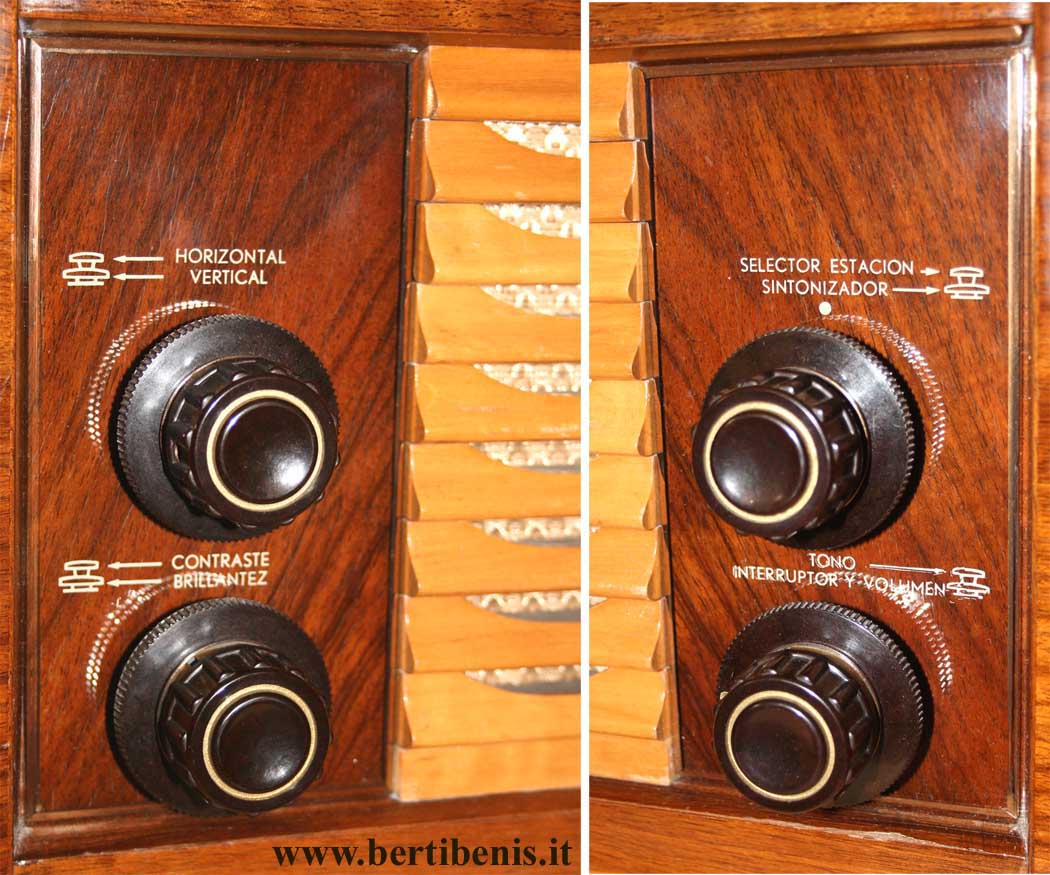

Like you can see in the knobs enlarged pictures this set has the Spanish inscription so I assume it was manufactured for the Spain area.

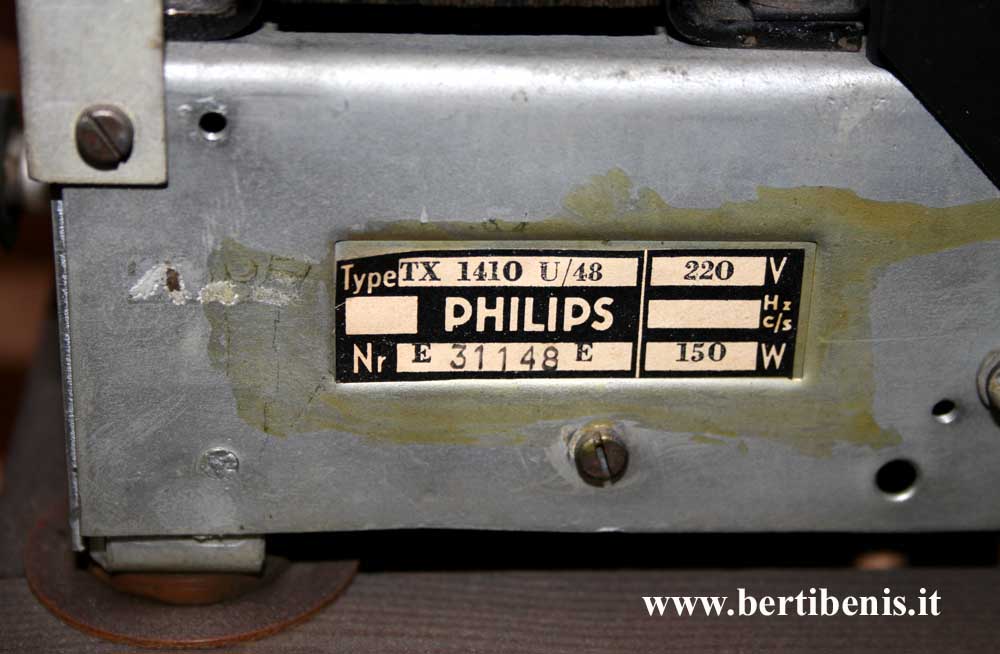

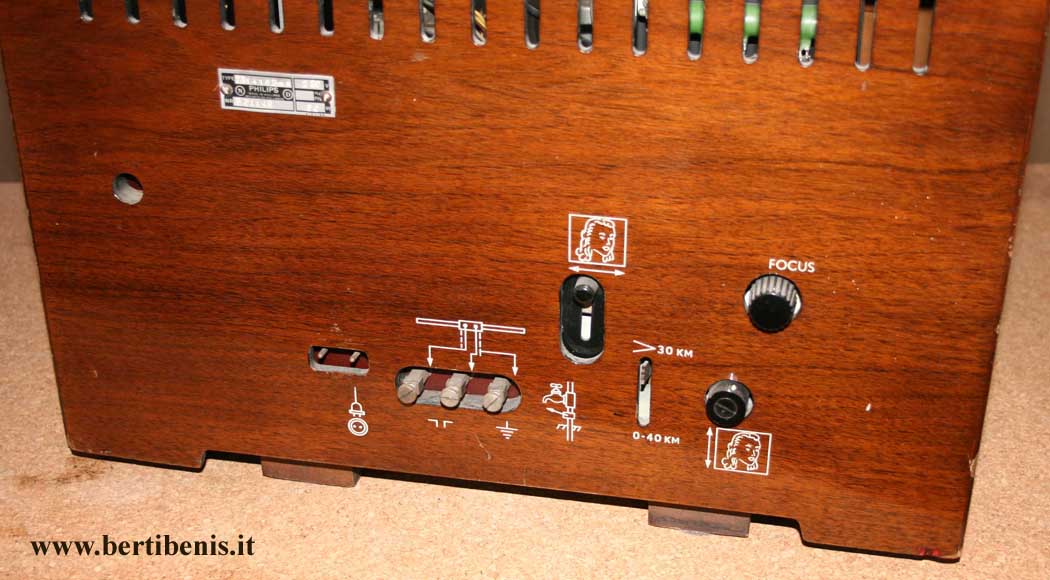

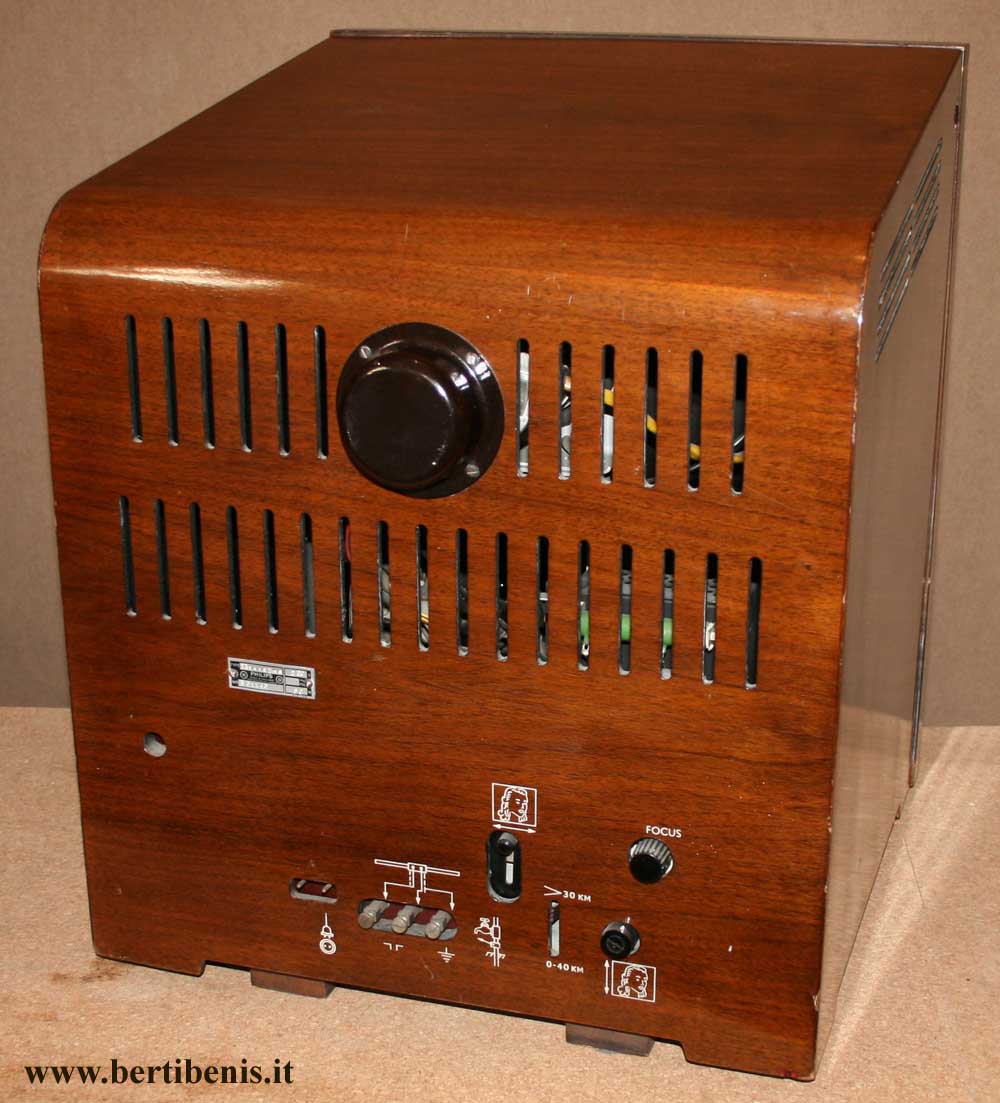

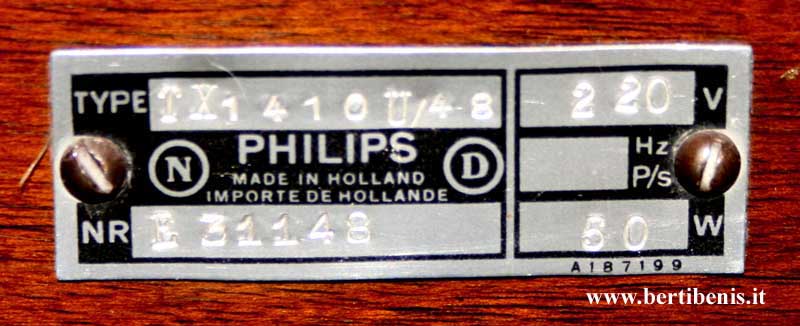

Power supply is 220 V /150 W, the rear cover aluminium plate has the wrong
inscription (50 W ).
|
 |
 |
