Brand

Radiomarelli

Model

Il MUSAGETE

Country

Italy

Year

1930

Frequency range

Medium Waves (200 600 m) (1400 500 Kc).

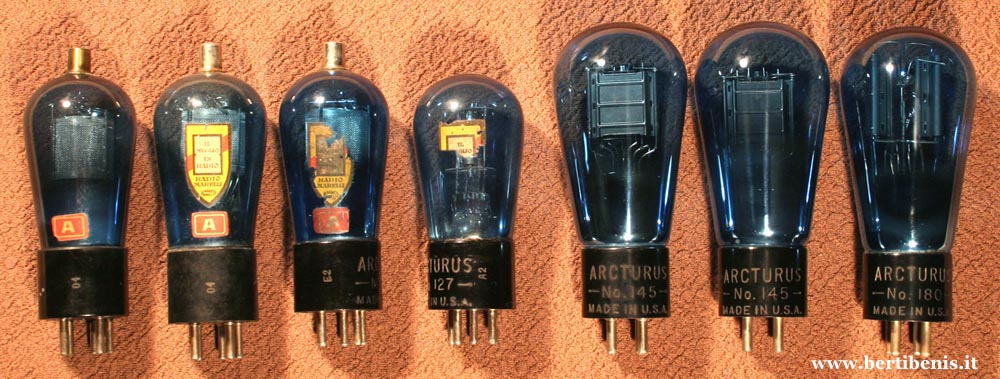

Tubes

24 - 24 - 24 - 27 45 45 - 80

Power supply

160 V. a.c.

Measure of the body

71,5 cm wide; 60 cm tall; 34,5 cm deep.

Overall dimensions

71,5 cm wide; 107,5 cm tall; 34,5 cm deep.

Weight

Kg. 42



Musagete is the first model of radio produced by Radiomarelli.

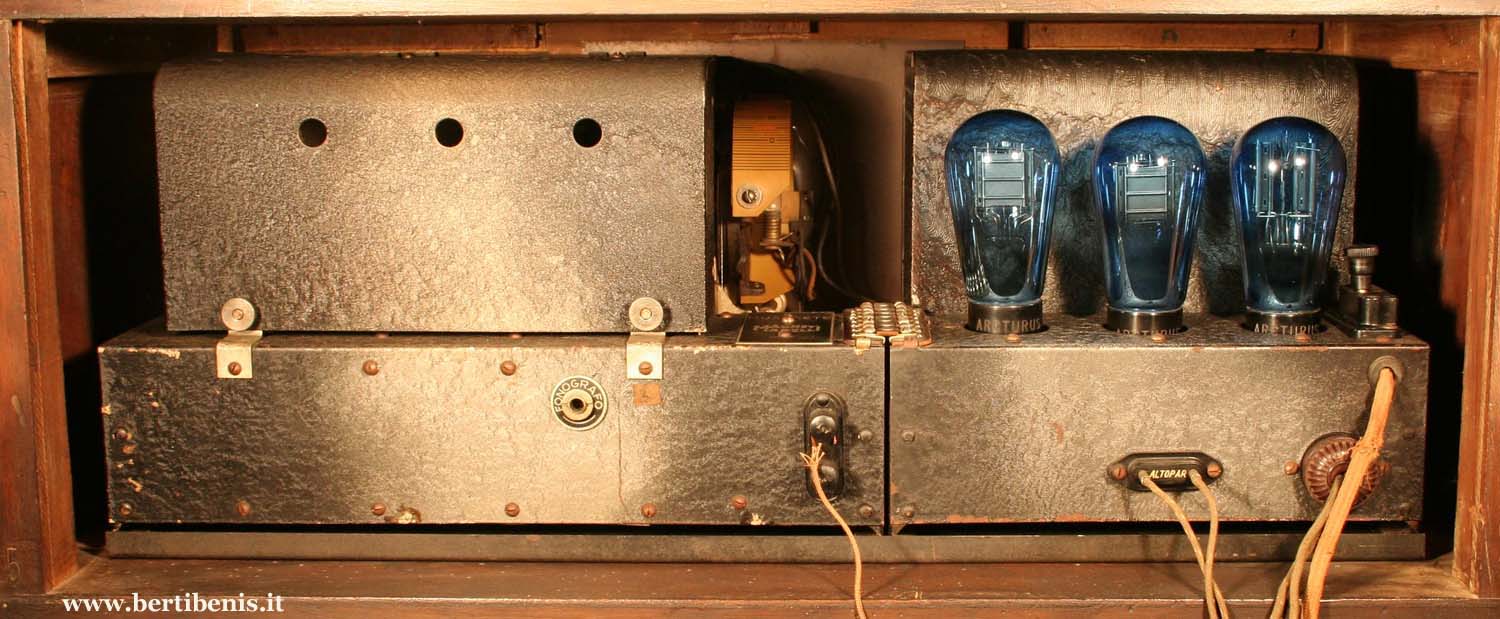

The chassis and the speaker of this radio was purchased from the American Bosch Magneto Company, the wood cabinet was made in Italy by Radiomarelli, but is very similar to the one of American Bosch mod.48.

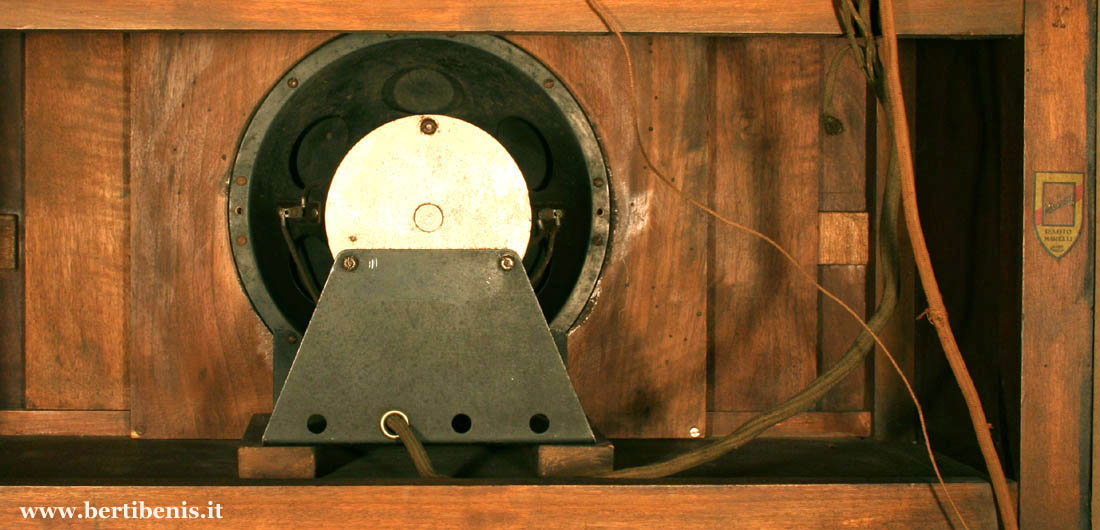

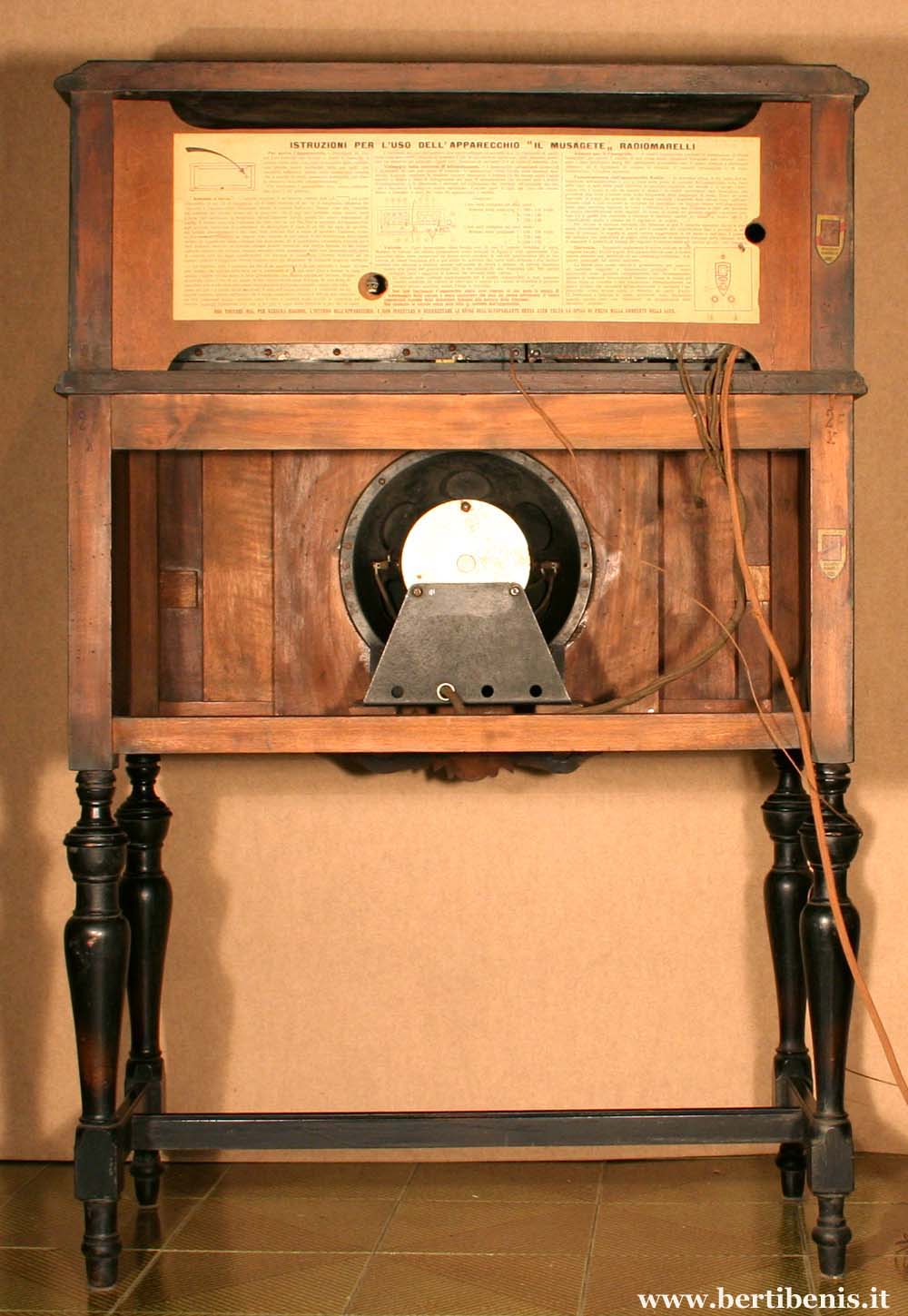

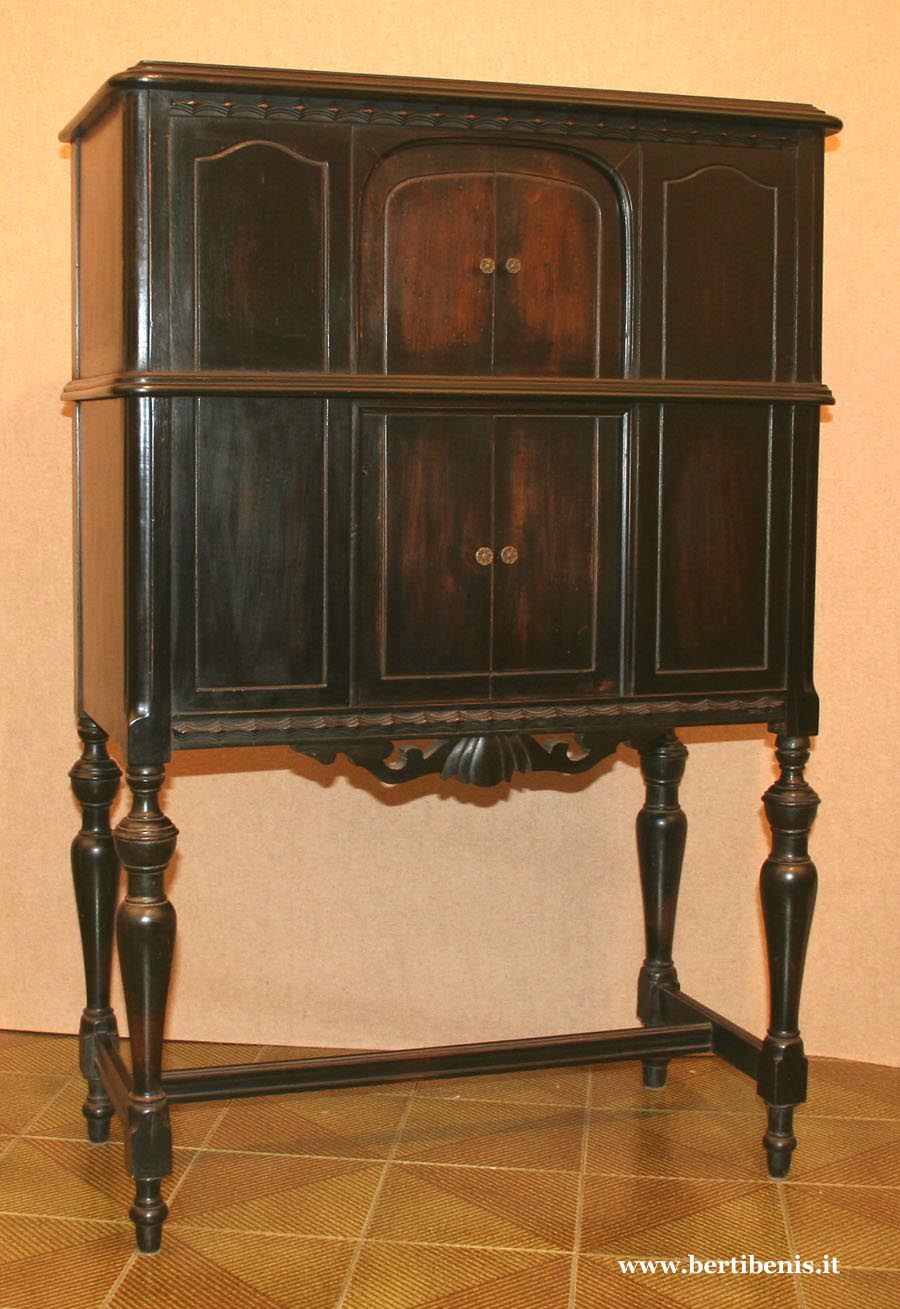

Like the Bosch 48, the cabinet of this radio is made in two separable parts, the upper part is the radio and the loudspeaker is located  in the lower part.

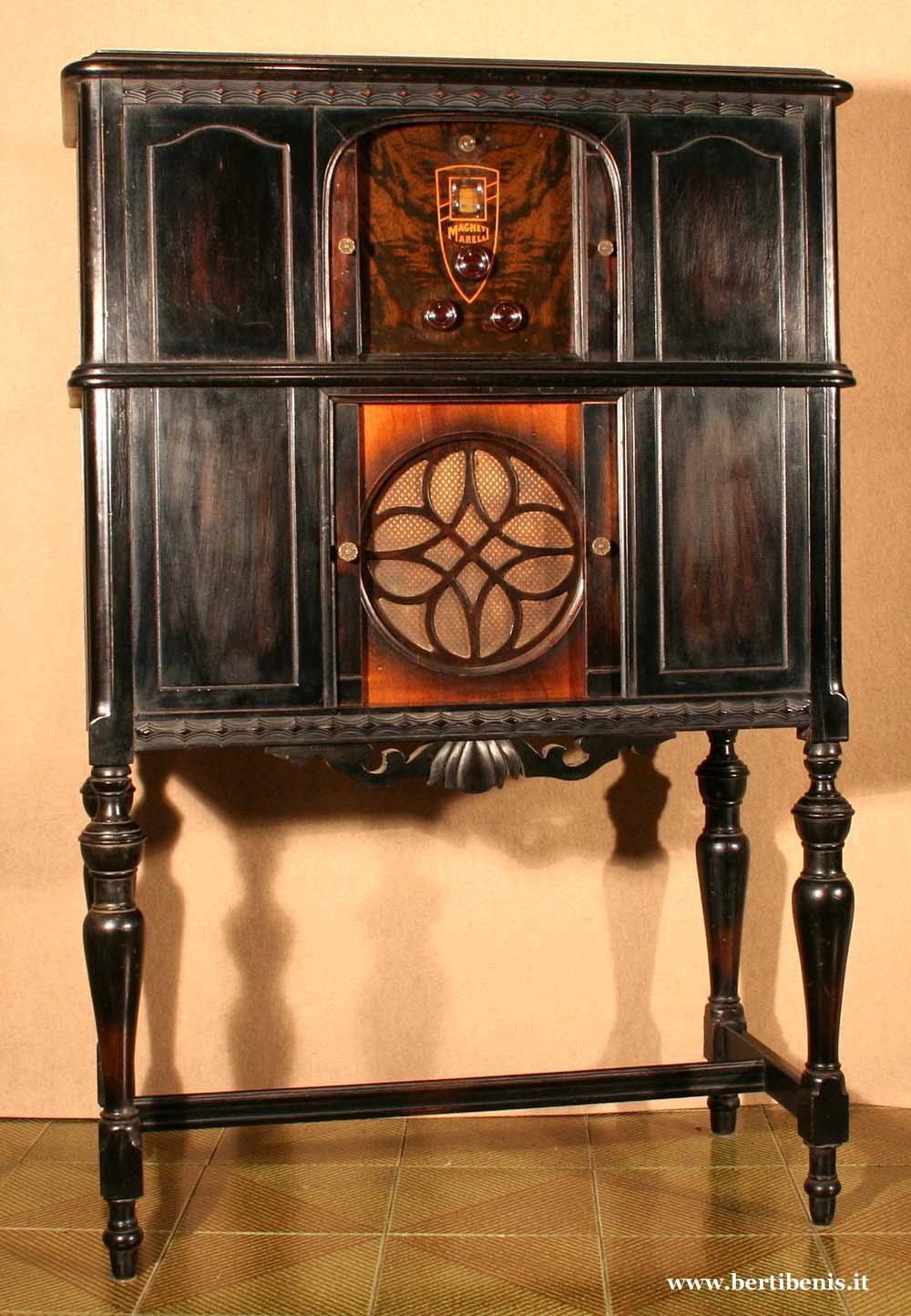

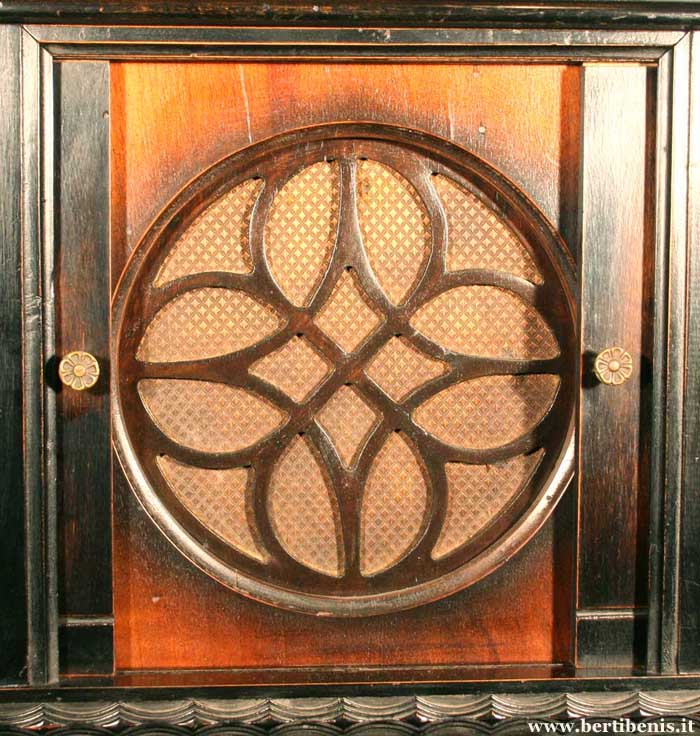

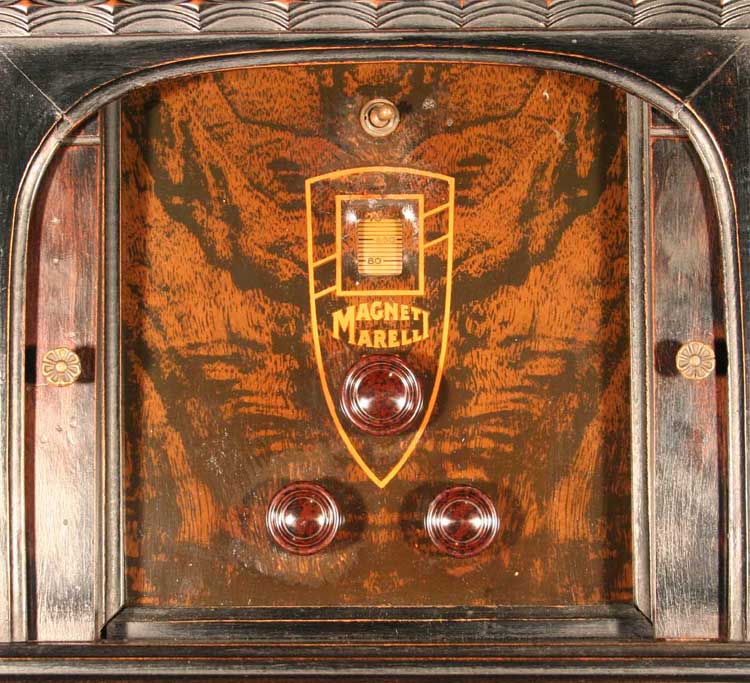

In the front side there are four sliding doors, behind them there are the controls and the grill of the speaker.

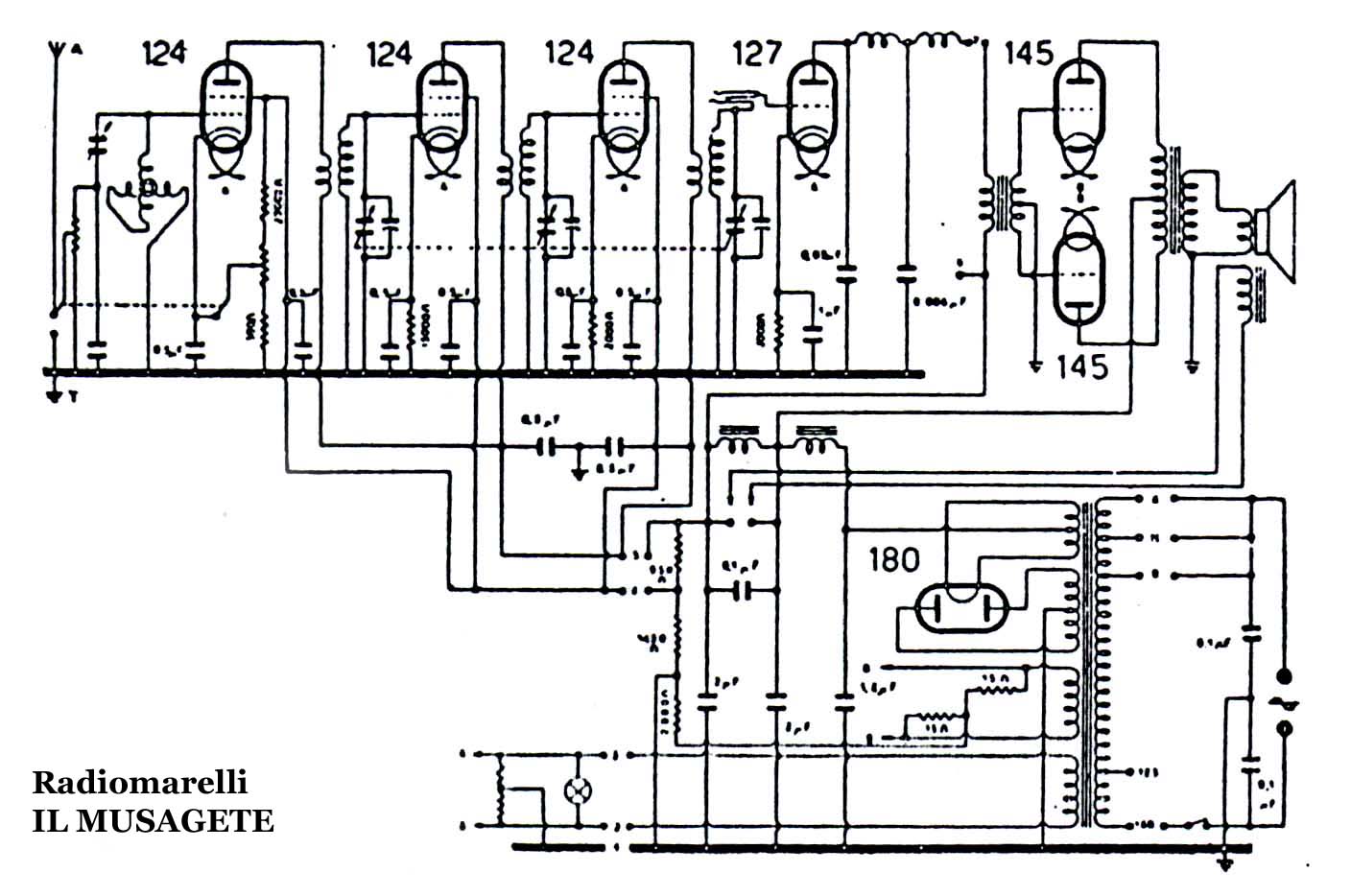

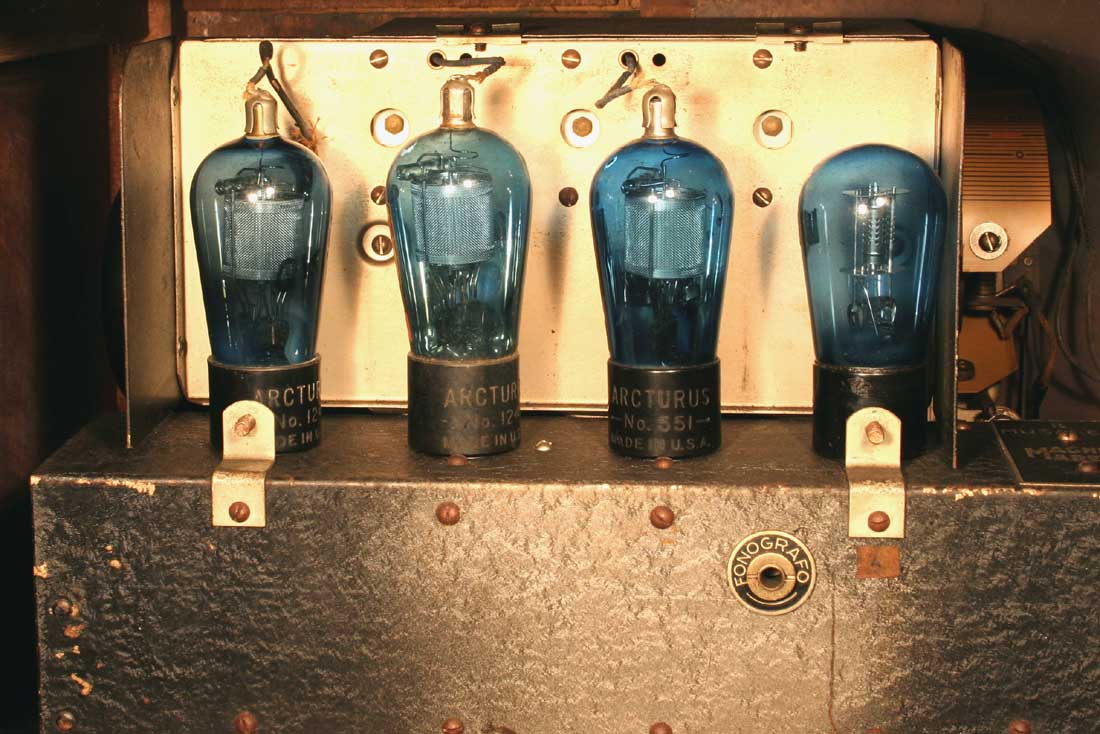

This set has the medium waves only and works with direct amplification coupled cascade stage circuits and an input variometer.

The low frequency amplifier is a push pull arrangement.
