Orion 420A
Orion 420 A
This is Berti Benis's web-site          you are on          www.bertibenis.it











Brand

Orion

Model

420A

Country

Hungary

Year

1954

Frequency range

Long Waves (940 - 2000 m), Medium Waves (185 – 580 m), Short Waves 1 (26 – 52 m), Short Waves 2 (13,7 - 26,1m)

Tubes

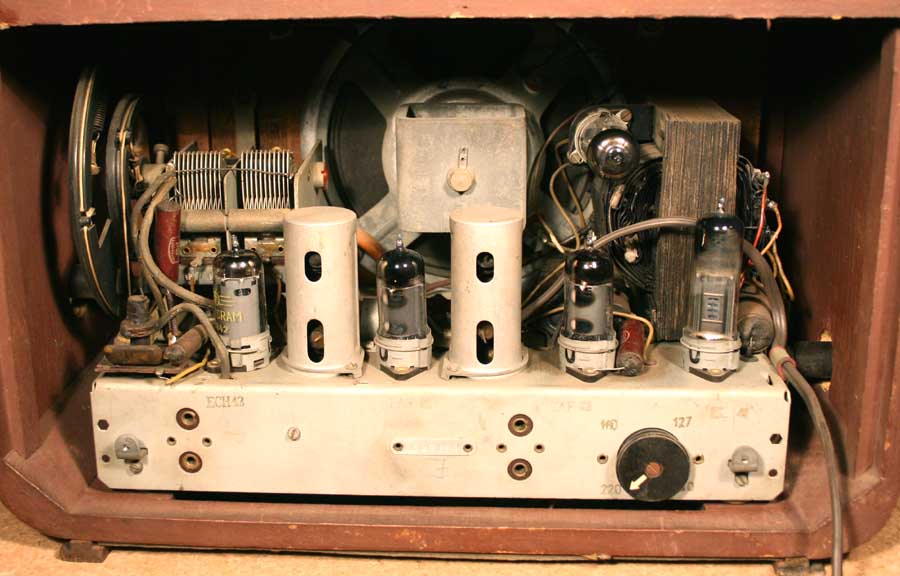

ECH42 – EAF42 – EAF42 - EL41 – AZ41

Intermediate frequency

473,6 Kc

Power supply

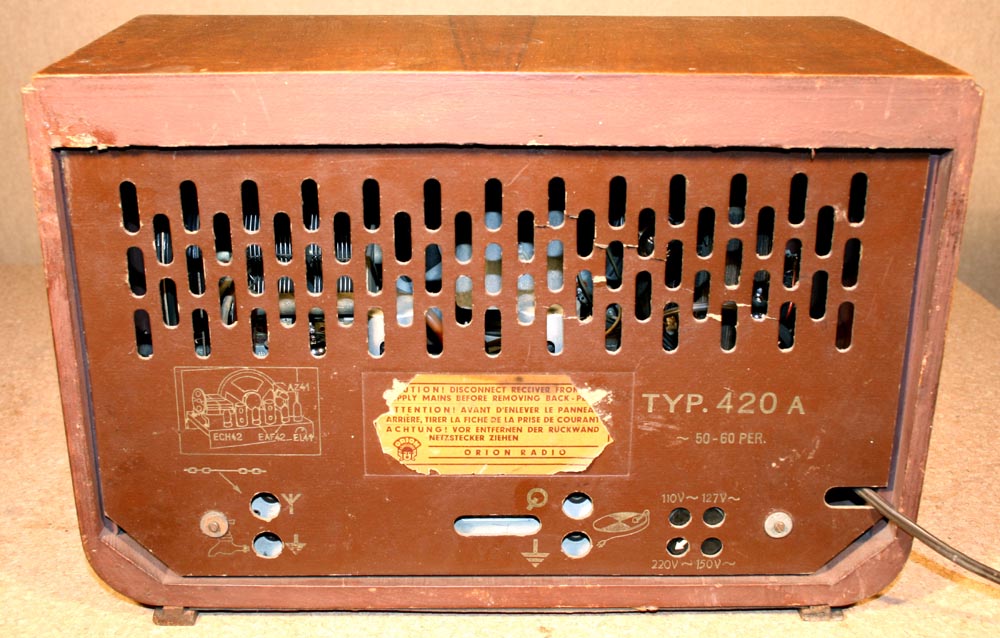

110 / 127 / 150 / 220 V. a.c.

Measure of the case

36,5 cm wide; 24 cm tall; 20,5 cm deep.

Overall dimensions

39,5 cm wide; 25 cm tall; 20,5 cm deep.

Weight

Kg. 7

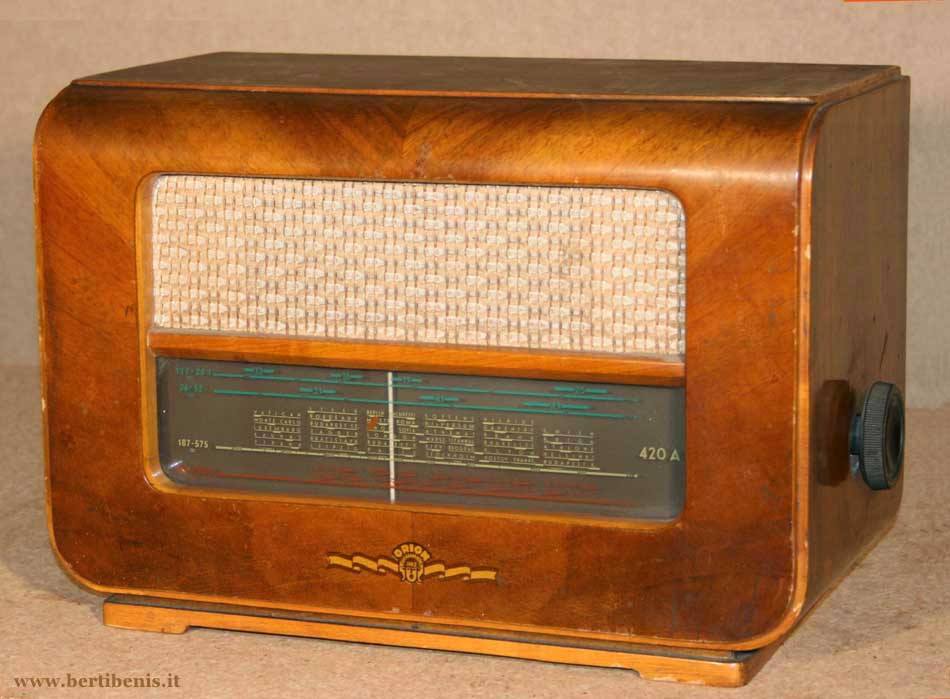

ORION TYP.420A is a four bands superheterodyne.

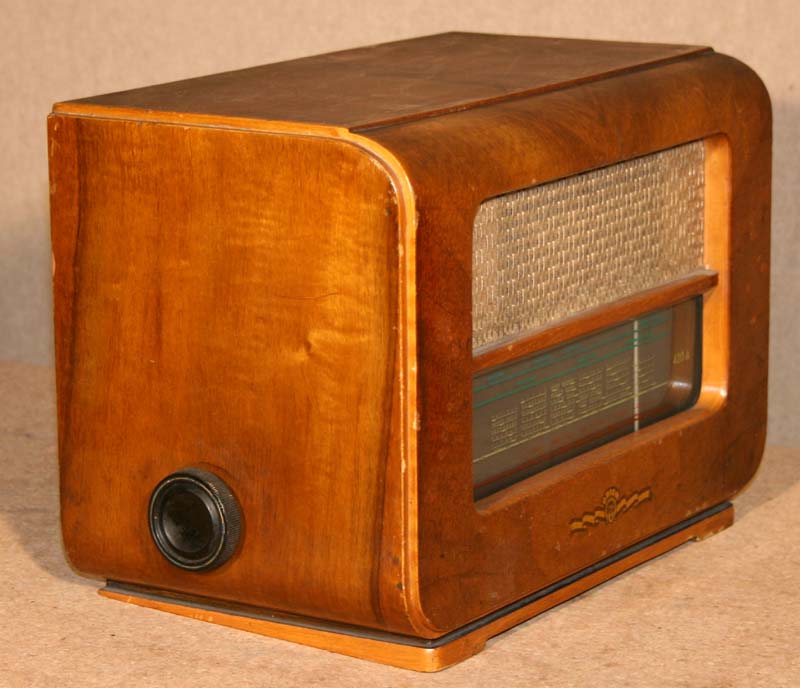

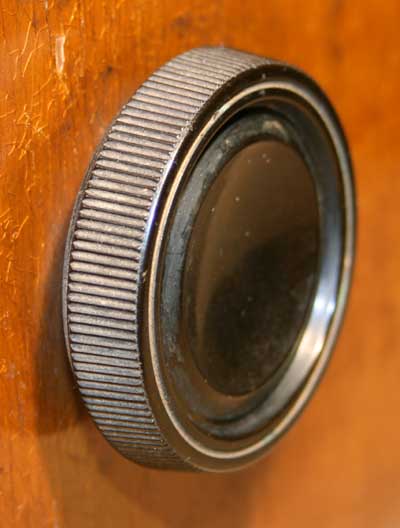

The knob in the left side operates the power switch / volume control and the knob in the right side has two separated functions: the tuning and the band switch. This knob, has two distinct axial positions: one to push and one to pull; in the first condition its rotation drives the tuning dial pointer, in the second condition its rotation operates the band switch.
