Orion 130A
Orion 130 A
This is Berti Benis's web-site          you are on          www.bertibenis.it













Brand

Orion

Model

130A

Country

Hungary

Year

1955

Frequency range

Medium Waves (187 - 575 m) (1605 - 520 Kc)

Tubes

UCH21 – UF21 – UBL21 – UY1N

Intermediate frequency

473,6 Kc

Power supply

110 / 220 V. a.c.

Measure of the case

30 cm wide; 24 cm tall; 16,5 cm deep.

Overall dimensions

30 cm wide; 25 cm tall; 18 cm deep.

Weight

Kg. 4,3



ORION TYP.130A  is part of a wide range of Népszuper (People's super) models that were manufactured in Hungary in the  '50 and '60 years.

Orion 130A is a superheterodyne whit chassis derived from 115A model néprádió, works with a continuous tuning system and has the medium waves only.

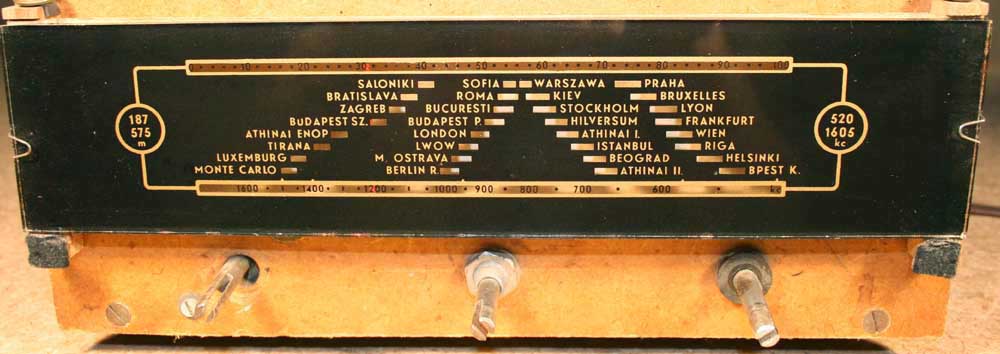

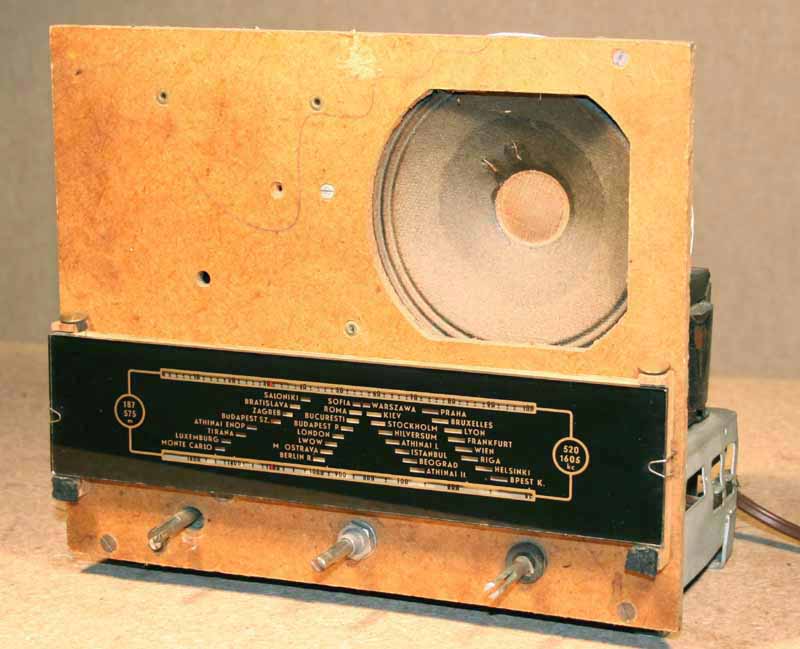

The left knob operates the power switch / volume control and the right knob operates the tuning dial pointer.

The set published has been modified to receive the short waves also.



For more information about the Népszuper (People’s super) radios please back to “Hungarian radios” page and click on the link “Hungarian People’s radio”.
