Brand

American Bosch Radio

Model

5

Country

U.S.A.

Year

1930

Frequency range

Medium Waves

Tubes

51 ; 51 ; 24 ; 47 ; 80

Power supply

110 V. a.c.

Measure of the case

36,5 cm wide; 22,5 cm tall; 17,5 cm deep.

Overall dimensions

36,5 cm wide; 23,5 cm tall; 19 cm deep.

Weight

Kg. 8



Bosch 5 was manufactured when the Italian Radiomarelli and American Bosch were business partners.

At that time the Italian company started  the Coribante production on the base of this radio.

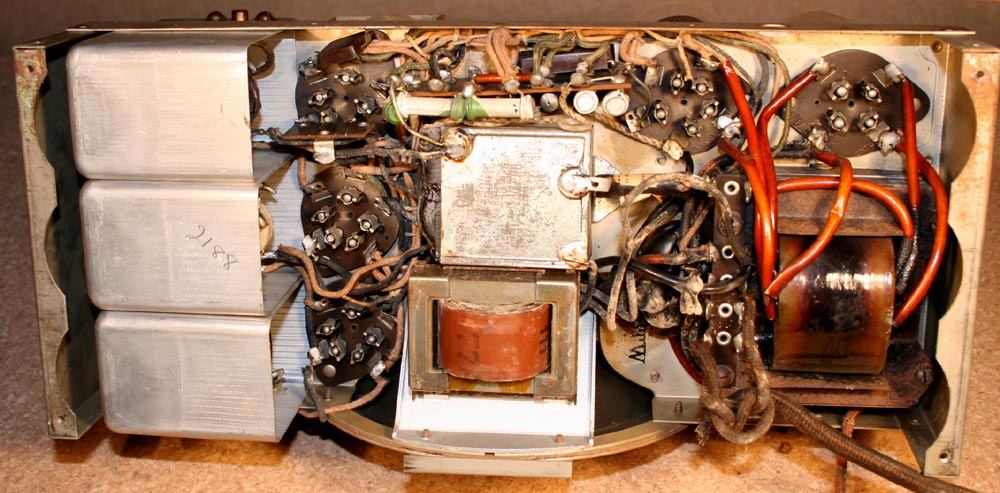

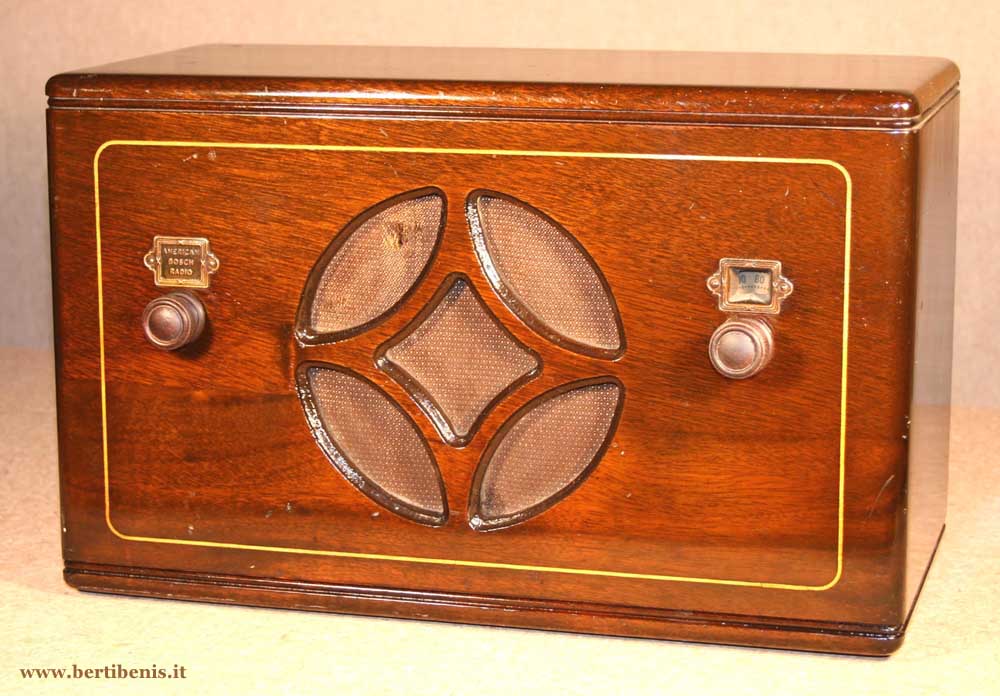

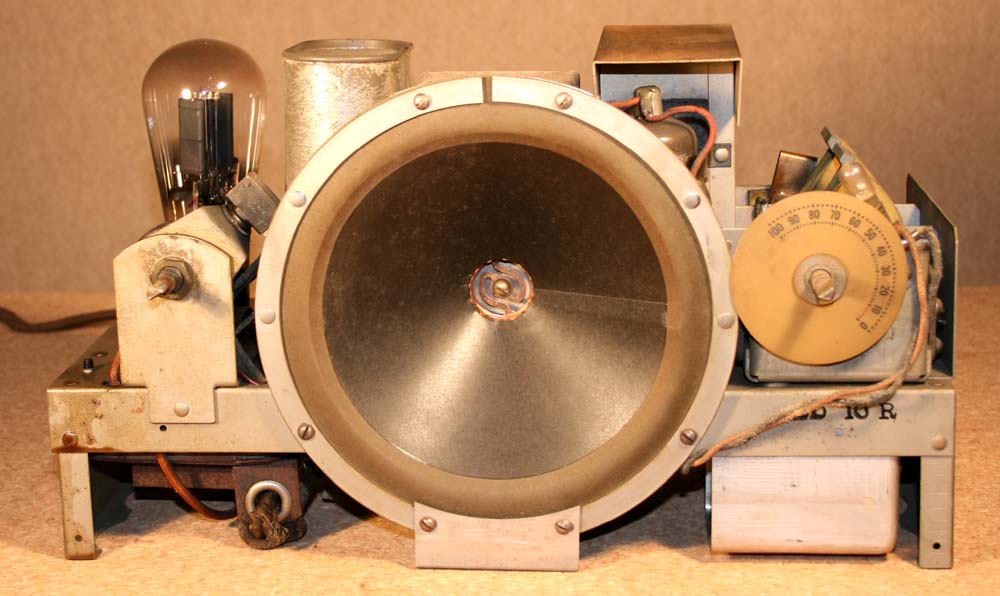

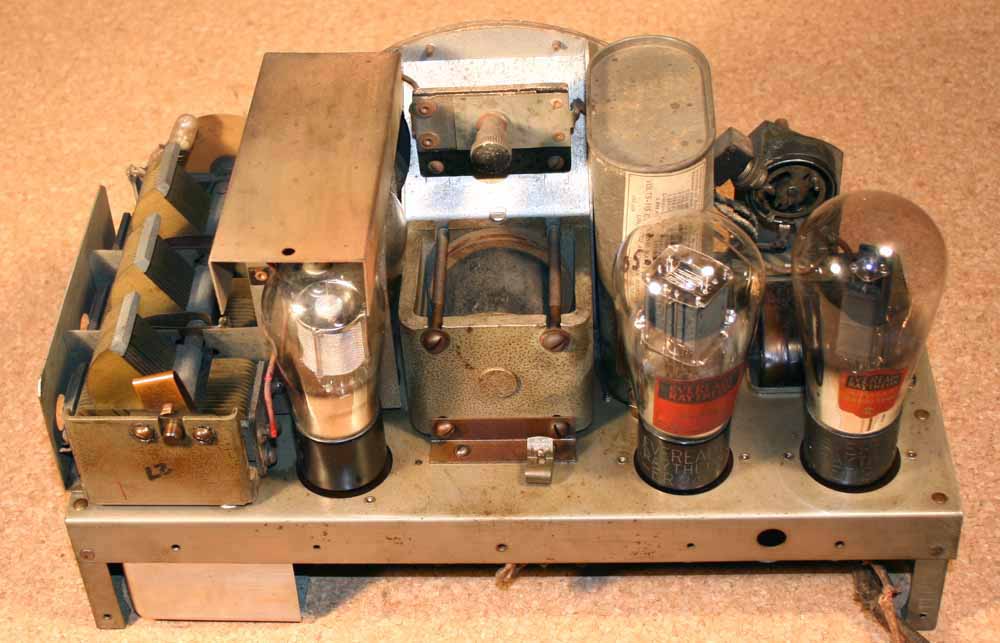

The wood case is most simple and sober than the Italian version, but just look at the chassis to understand that (apart the transformer) the two radios are very similar.

This set has the standard broadcast band only and works with direct amplification coupled cascade stage circuits.

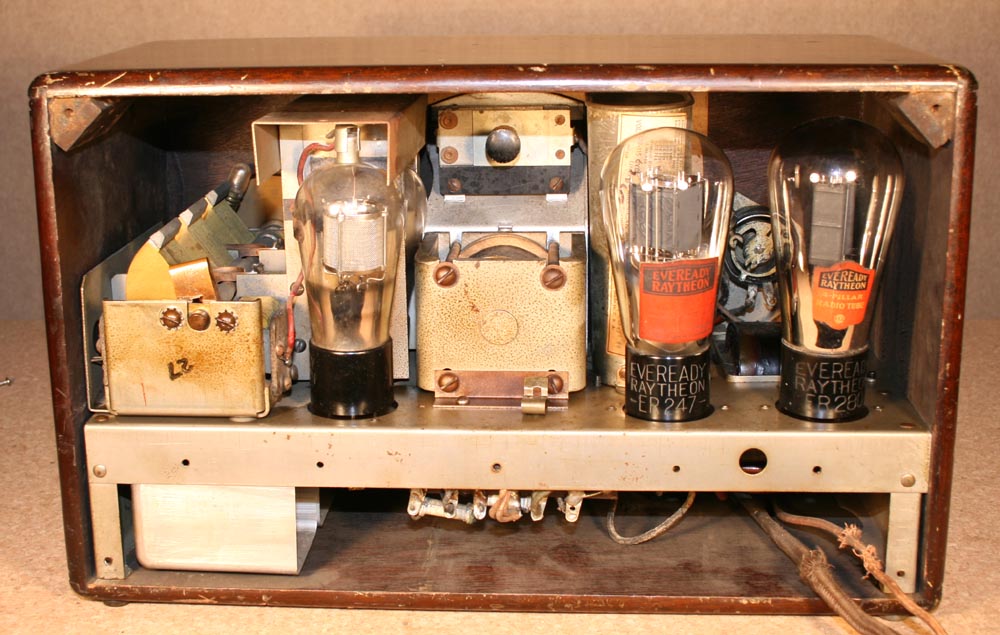

In this radio were originally used the famous Eveready Raytheon tubes:

ER551 - ER551 - ER224 - ER247 - ER280.
