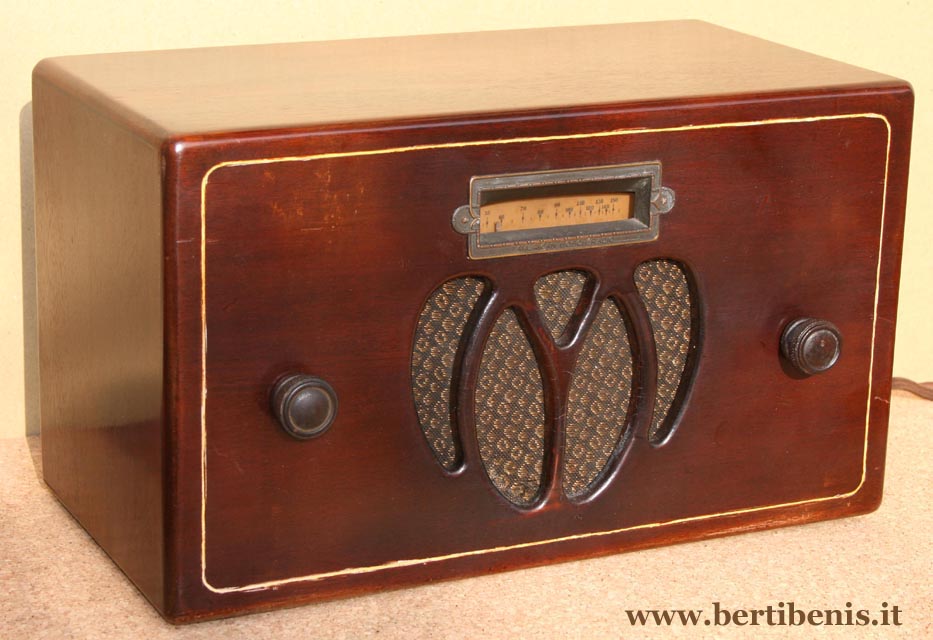

American Bosch 36A
American Bosch 36 A
This is Berti Benis's web-site          you are on          www.bertibenis.it

















Brand

American Bosch Radio

Model

36A

Country

U.S.A.

Year

1933

Frequency range

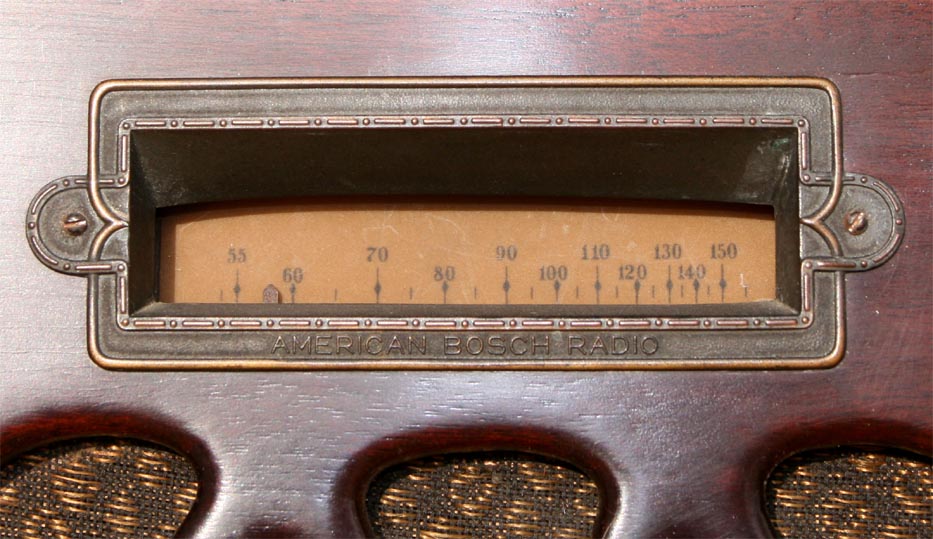

Medium Waves

Intermediate frequency 175 KHz

Tubes

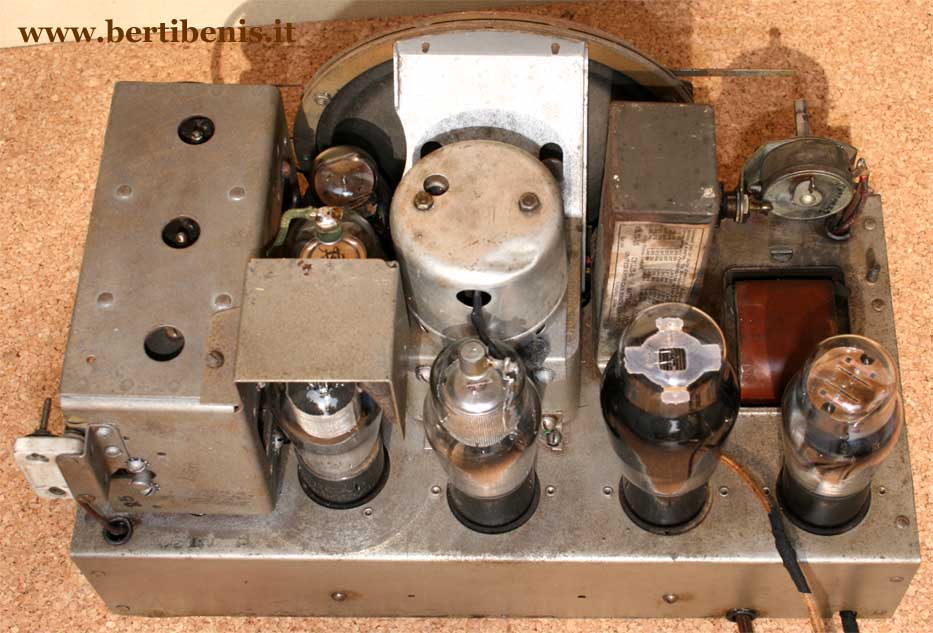

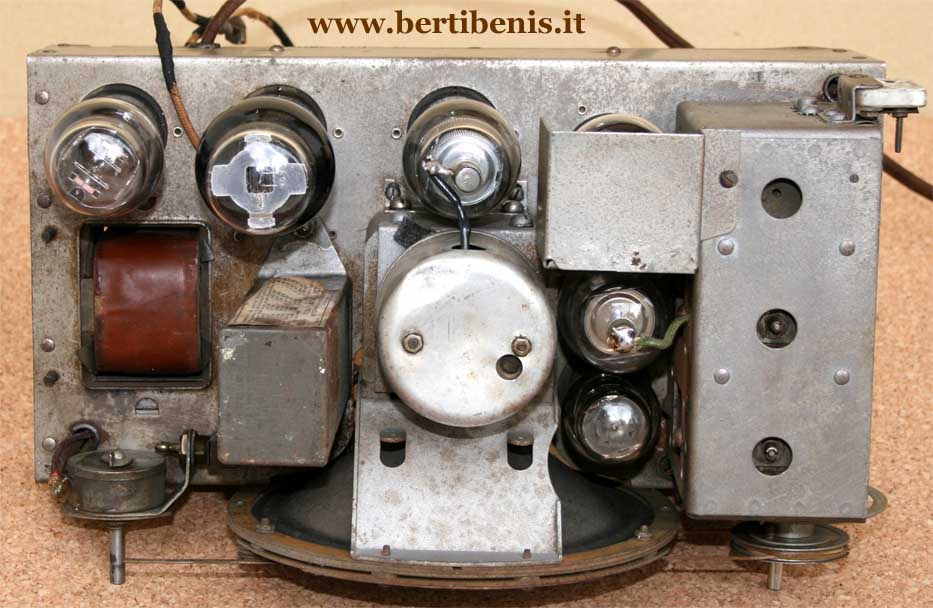

27 : 51 ; 51 ; 24 ; 47 ; 80

Power supply

110 V. a.c.

Measure of the case

38 cm wide ;  22,5 cm tall ; 20 cm deep.

Overall dimensions

38 cm wide ;  23 cm tall ; 22 cm deep.

Weight

Kg. 10



Model 36A is the mod. 5A evolution.

This is a superheterodyne set, the RF converter stage works with two separate tubes:  type 27 triode as oscillator and a type 51 pentode as mixer.

This set has the medium waves only.
