ZENITH ROYAL 500 H

This is Berti Benis's web-site          you are on          www.bertibenis.it













Brand

Zenith Radio Corp.  Chicago, Illinois

Model

Royal 500 - H version

Country

U.S.A.

Year

1962

Frequency range

Medium Waves

Transistors

8 (germanium)

Power supply

6 V.  with  four batteries 1,5 V -  AA type

Measure of the case

9 cm wide;  15 cm tall; 4 cm deep.

Overall dimensions

10 cm wide;  16 cm tall; 4,3 cm deep.

Weight (w/out batt.)

0,490 Kg



Zenith Royal 500, called "owl eyes", was manufactured in many versions which differs in the chassis model and in the case shape.

The first version ďAĒ (chassis 7XT40) has 7 transistor, doesnít have the printed circuit board  and itís hand-wired; It differs from the other versions by the bars that extend across the volume and tuning knobs and the tuning control is direct made, the knob operates in the variable capacitor shaft.

The B version (chassis 7ZT40), made in 1957, has the printed circuit board and a vernier tuning capacitor.

In 1958/59 was manufactured the D version (chassis 8AT40) which has an extra transistor added to improve reception.

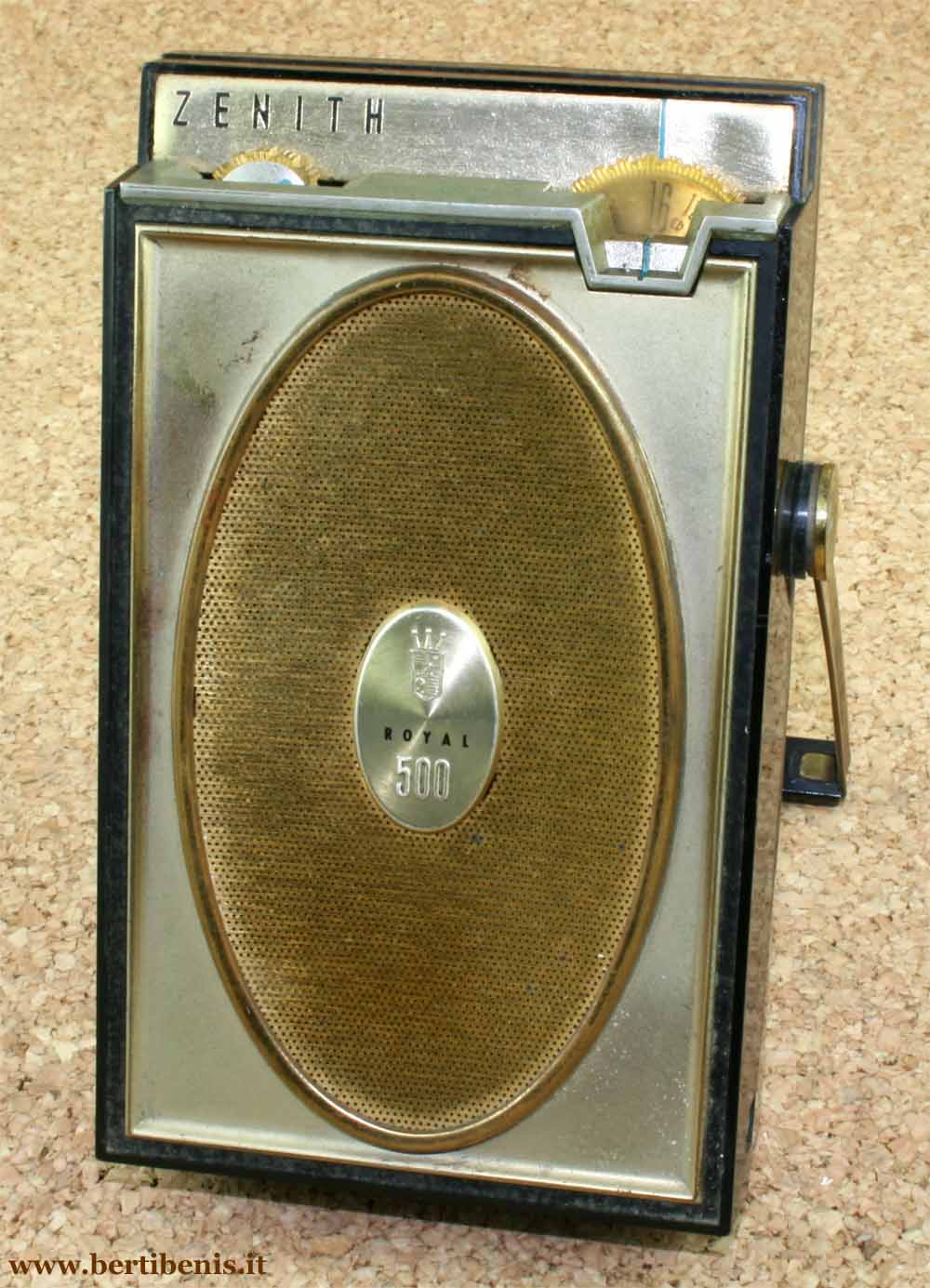

In 1962 Royal 500 was entirely restyled (H version) later manufactured E and L versions.
