Radio Roma SAFAR

             ( version with American tubes )



Safar mod. Roma

This is Berti Benis's web-site          you are on          www.bertibenis.it











Brand

Safar

Model

Roma

Country

Italy

Year

1939

Frequency range

Medium Waves (510 1500 Kc) (590 200 m.)

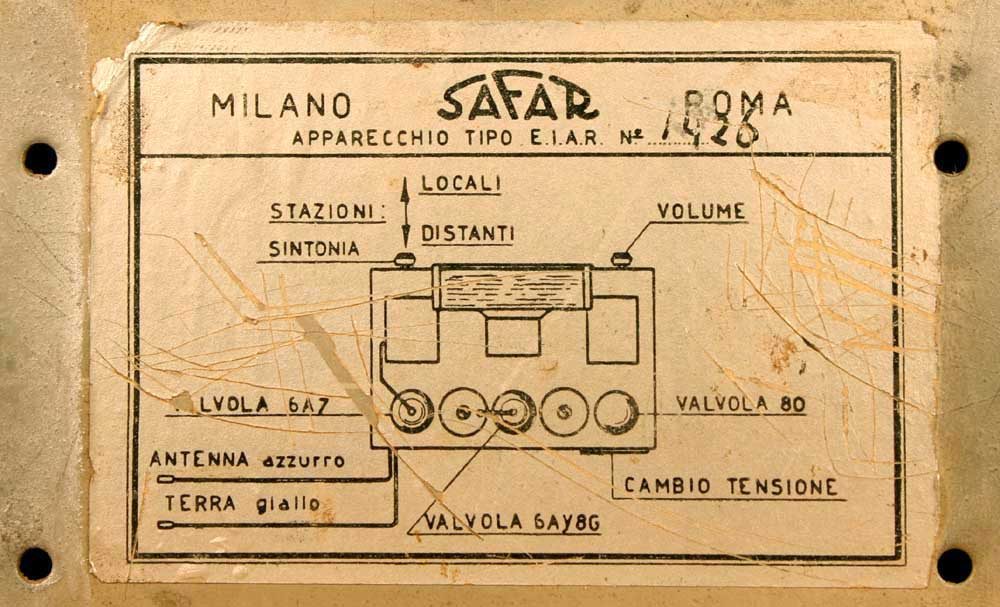

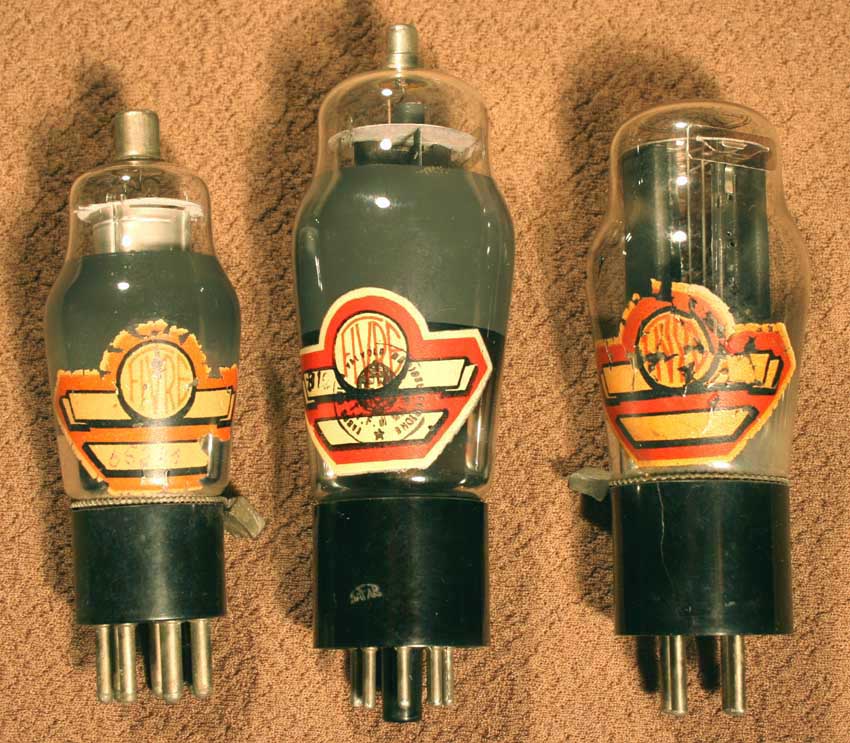

Tubes

6A7 6AY8 G - 80

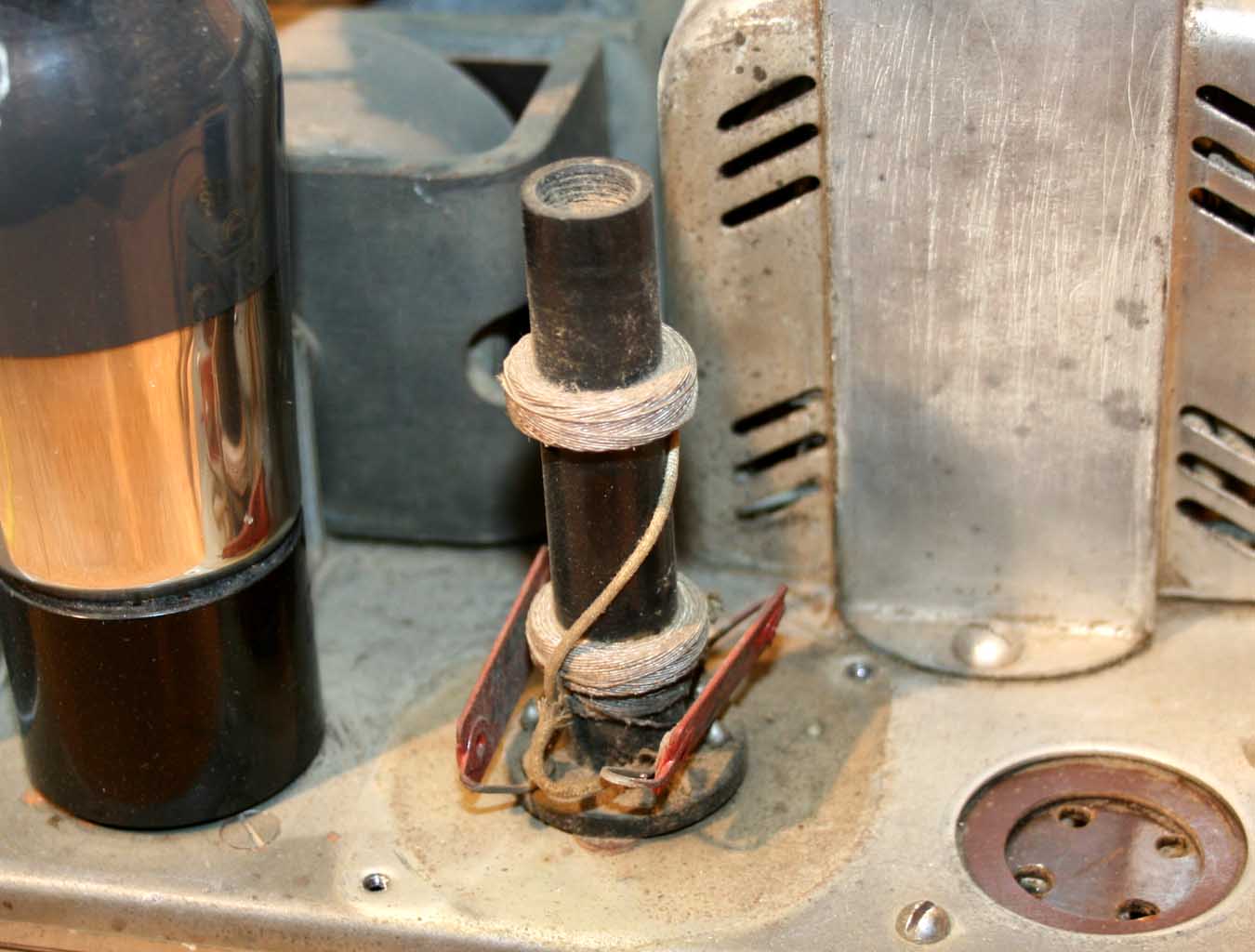

Intermediate frequency

470 Kc

Power supply

110 / 125 / 140 / 160 / 220 V. a.c.

Measure of the case

29,8 cm wide; 24,3 cm tall; 18,4 cm deep.

Overall dimensions

29,8 cm wide; 24,7 cm tall; 20,4 cm deep.

Weight

Kg. 5,6

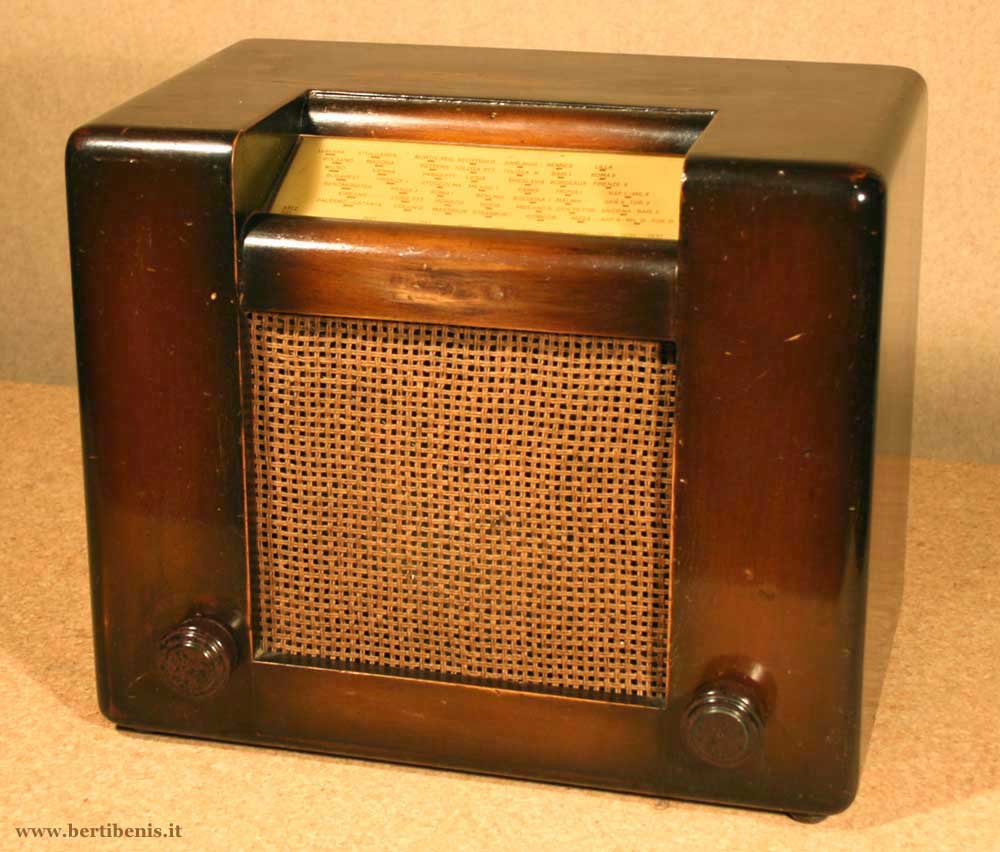

Safar Radio Roma was manufactured in two versions which differs only for the type of tubes used: European tubes, American tubes.

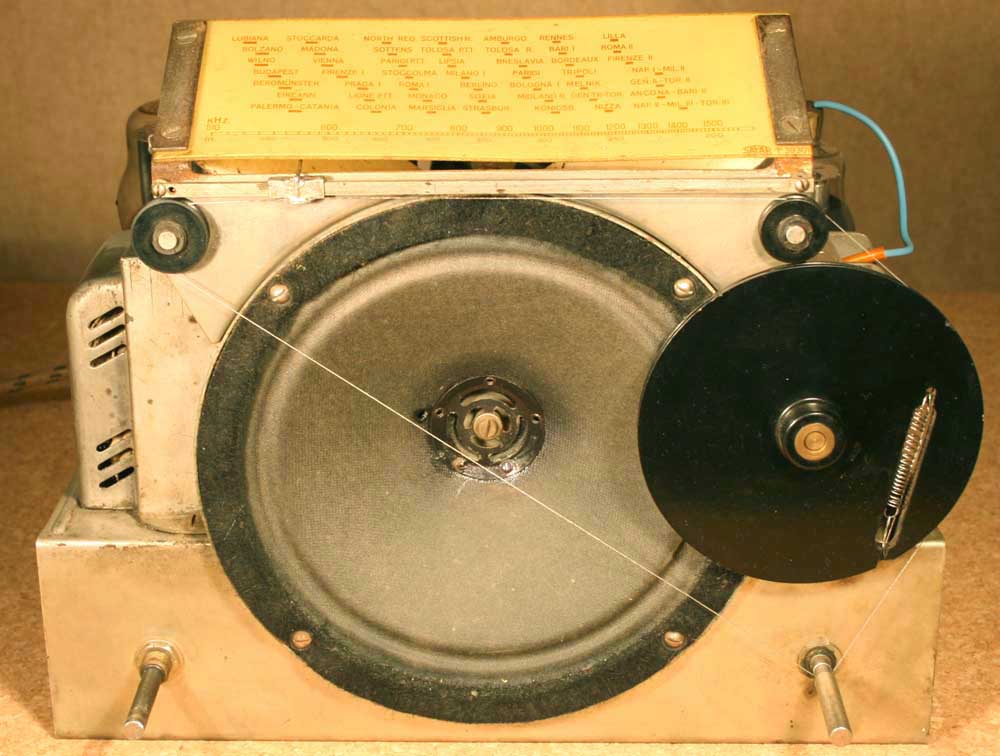

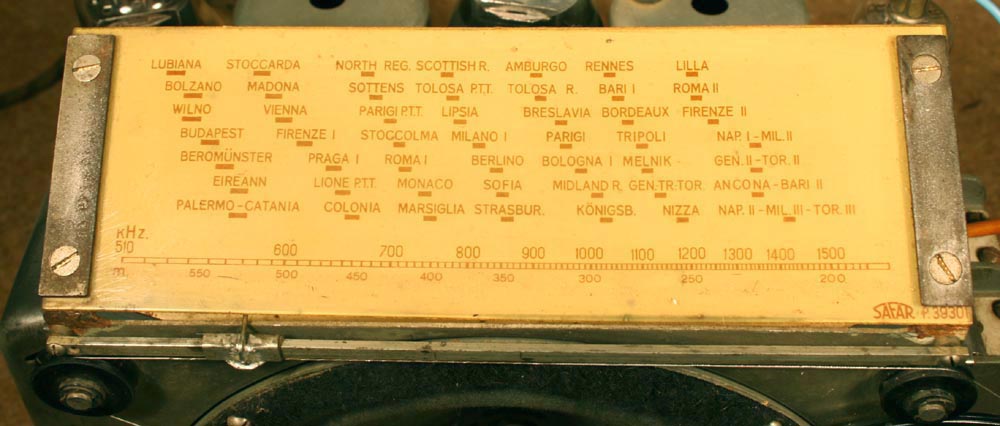

The left knob operates the power switch / volume control and the right knob has two simultaneous functions: tuning and the sensitivity;  the rotation drives the tuning dial pointer and the axial movement activates a switch that lets you choose between local broadcaster and far broadcaster. By pulling the knob toward oneself is selected the lower sensitivity and the radio is set to receive the local broadcasters.

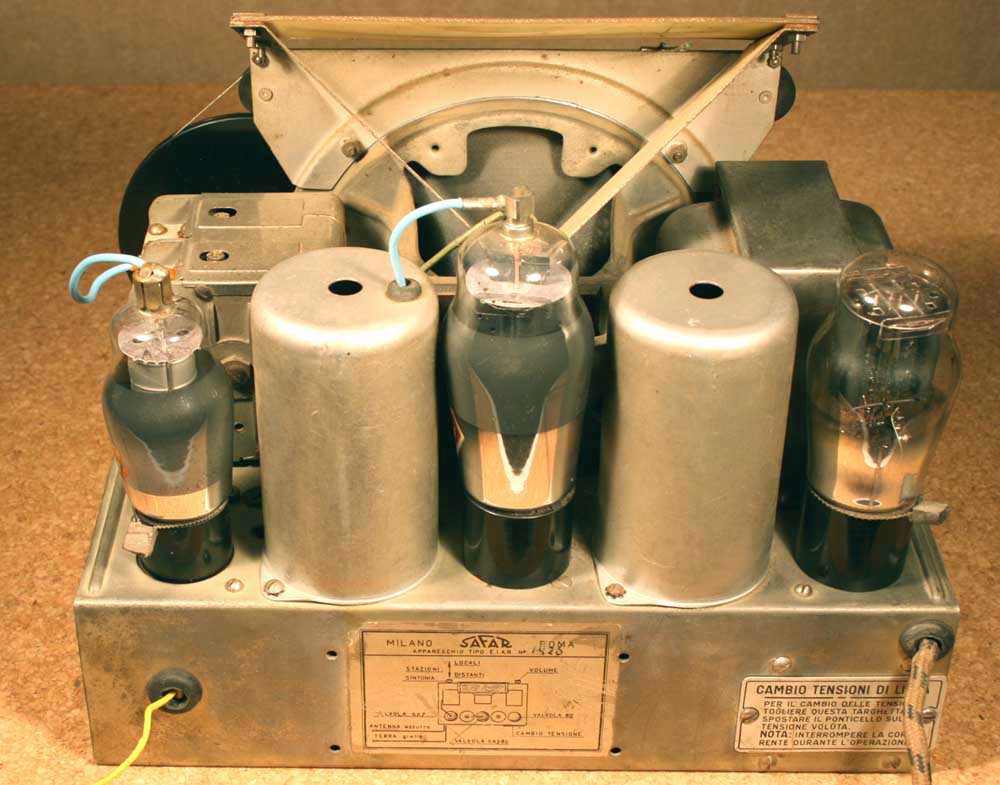

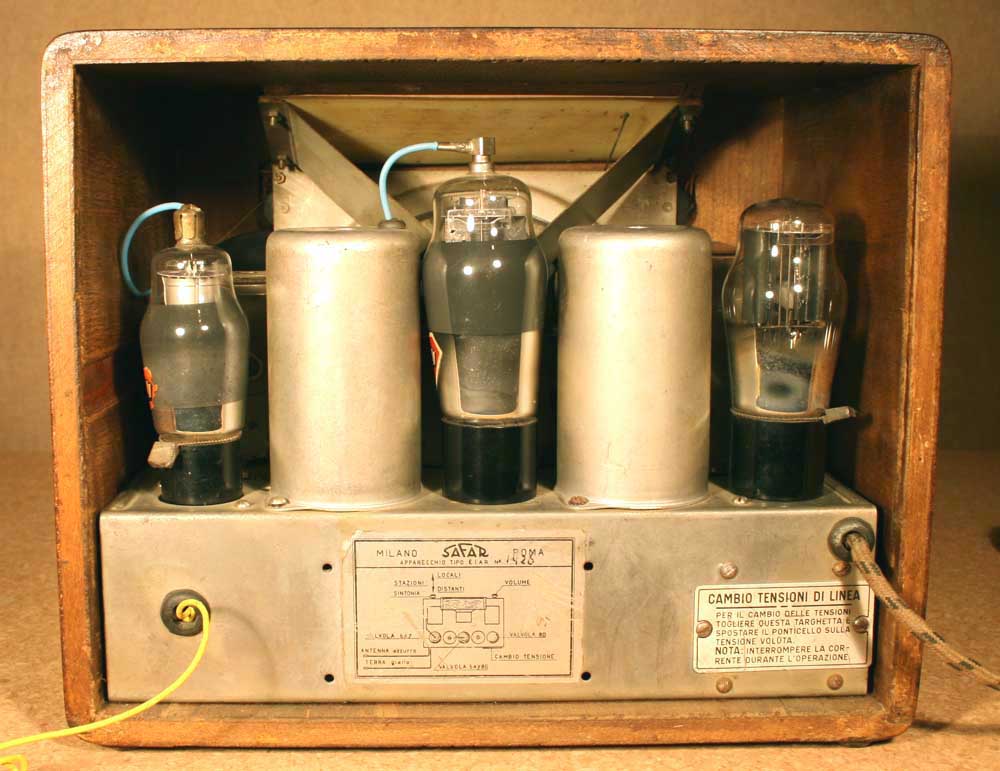

The set published in this page has the American series tubes and is in original conditions.
