ORION 331

ORION331
This is Berti Benis's web-site          you are on          www.bertibenis.it









Brand

Orion

Model

331

Country

Hungary

Year

1950

Frequency range

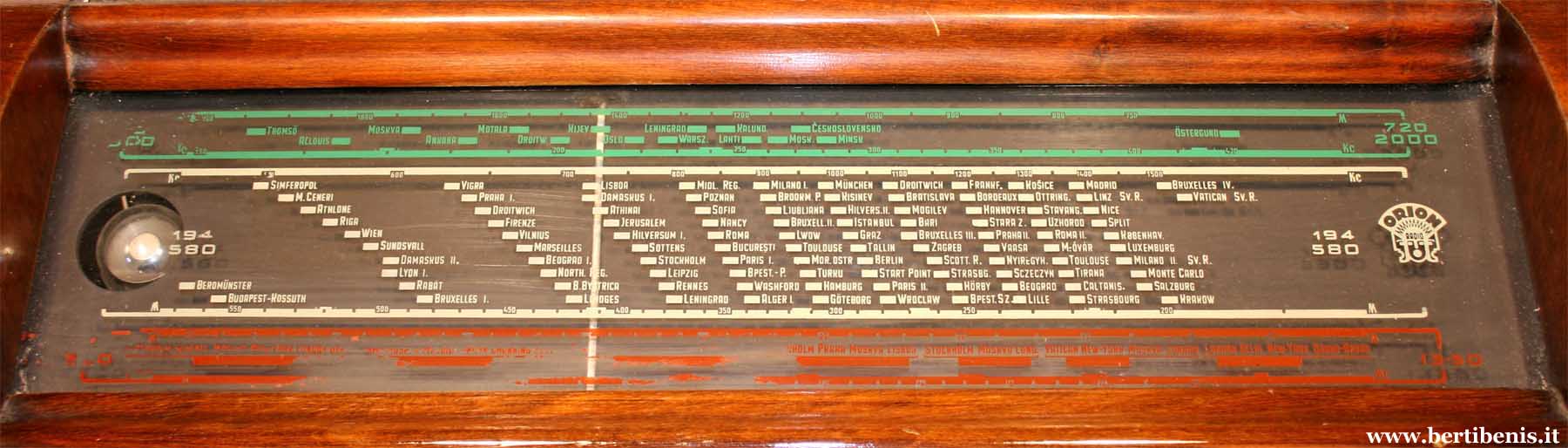

Long Waves 715-2000 m.(150 - 420 Kc), Medium Waves 185 – 570 m.(525 - 1580 Kc), Short Waves 16 - 50 m.(6 - 20 Mc)

Tubes

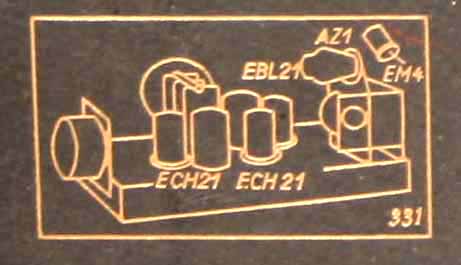

ECH21 - ECH21 - EBL21 - AZ1- EM4

Intermediate frequency 473,6 Kc

Power supply

110 / 120 / 150 / 220 V. a.c.

Measure of the case

51,8 cm wide; 36,5 cm tall; 26,5 cm deep.

Overall dimensions

53 cm wide; 37,5 cm tall; 26,5 cm deep.

Weight

10,5 Kg



Orion 331 it’s a simple but very good superheterodyne set, it  works very well and can receive several stations on medium, long and short waves.
The left knob operates the power switch / volume control and the right knob is for the tuning. The central knob operates the tone control.

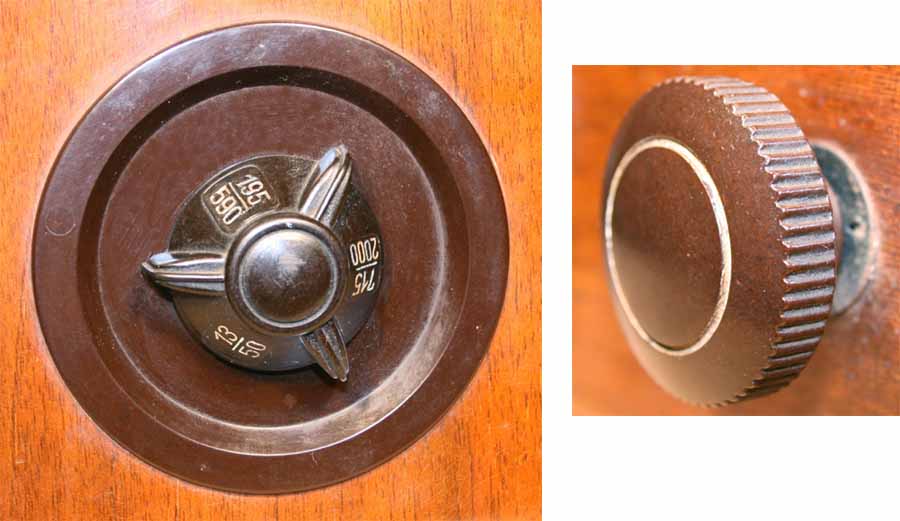

The rotating switch band is operated by the knob in the right side of the cabinet.
